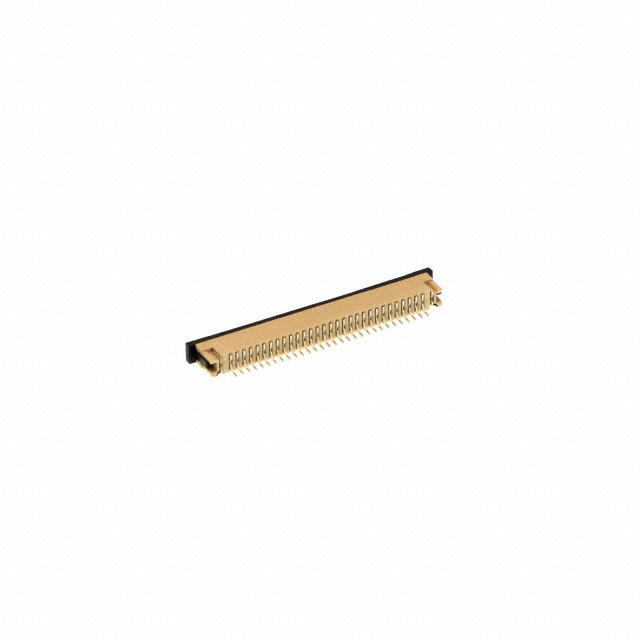

ZF1-30-01-T-WT
ActiveSamtec Inc.
CONN FFC BOTTOM 30POS 1MM R/A
Description
General part information
ZF1-30 Series
30 Position FFC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | ZF1-30-01-T-WT |
|---|---|
| Actuator Color | Black |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Cable End Type | Straight |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Current Rating (Per Contact) | 1.9 A |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FFC |
| Height Above Board | 0.118 in |
| Housing Color | Natural |
| Housing Material | Liquid Crystal Polymer, LCP |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 30 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.039 in |
| Termination | Solder |
