52-271.025

Active

EAO

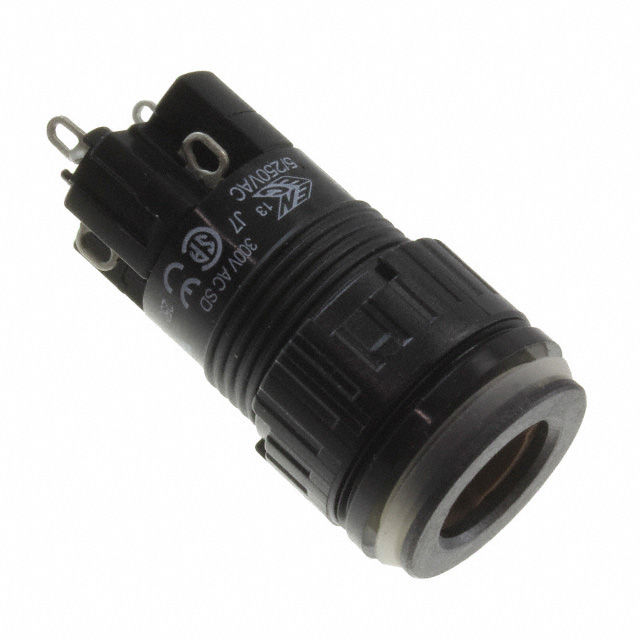

SWITCH SELECT 2POS DPST 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH SELECT 2POS DPST 5A 250V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Selector Switch 2 Position DPST-NO/NC 5A (AC) 250 V Panel Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	52-271.025	52-271 Series

Approval Agency	CB, CSA, UL, CE	CB, CSA, UL, CE
Circuit	DPST-NO/NC	DPST-NO/NC
Current Rating (Amps)	5 A	5 A
Illumination	Illuminated	Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles	1000000 Cycles
Number of Positions	2	2
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm	16.2 mm
Switch Function	On-Off, Off-On	On-Off, Off-On
Termination Style	Solder Lug	Quick Connect, Solder, Solder Lug
Termination Style	-	0.11 in
Termination Style	-	2.8 mm
Type	Standard	Standard
Voltage Rating - AC	250 V	250 V

SWITCH SELECT 2POS DPST 5A 250V

Part	Number of Positions	Ingress Protection	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Illumination	Termination Style	Termination Style	Termination Style	Circuit	Type	Approval Agency	Mechanical Life	Voltage Rating - AC	Panel Cutout Dimensions [diameter]
EAO 52-271.022	2	IP65 - Dust Tight, Water Resistant	5 A	55 °C	-25 °C	Off-On, On-Off	Illuminated	0.11 in	Quick Connect, Solder	2.8 mm	DPST-NO/NC	Standard	CB, CE, CSA, UL	1000000 Cycles	250 V	16.2 mm
EAO 52-271.025	2	IP65 - Dust Tight, Water Resistant	5 A	55 °C	-25 °C	Off-On, On-Off	Illuminated		Solder Lug		DPST-NO/NC	Standard	CB, CE, CSA, UL	1000000 Cycles	250 V	16.2 mm
EAO 52-271.012	2	IP65 - Dust Tight, Water Resistant	5 A	55 °C	-25 °C	Off-On, On-Off	Illuminated		Solder Lug		DPST-NO/NC	Standard	CB, CE, CSA, UL	1000000 Cycles	250 V	16.2 mm
