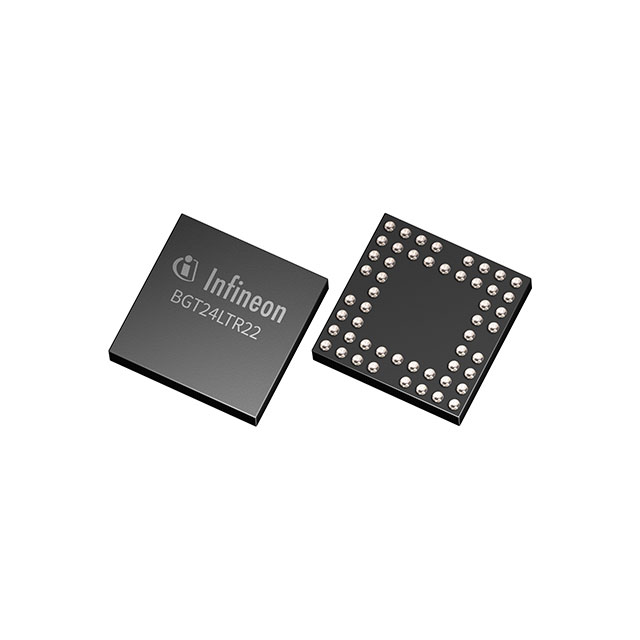

BGT24LTR11N16E6327XTSA1

Active

Infineon Technologies

THE BGT24LTR11 IS A 24.0GHZ TO 24.25GHZ SILICON GERMANIUM RADAR MMIC FOR SIGNAL GENERATION / RECEPTION PACKED IN A 16-PIN LEADLESS ROHS COMPLIANT TSNP PACKAGE.

Deep-Dive with AI

Search across all available documentation for this part.

BGT24LTR11N16E6327XTSA1

Active

Infineon Technologies

THE BGT24LTR11 IS A 24.0GHZ TO 24.25GHZ SILICON GERMANIUM RADAR MMIC FOR SIGNAL GENERATION / RECEPTION PACKED IN A 16-PIN LEADLESS ROHS COMPLIANT TSNP PACKAGE.

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BGT24LTR11N16E6327XTSA1

Current - Receiving	45 mA
Current - Transmitting	45 mA
Frequency [Max]	24.25 GHz
Frequency [Min]	24 GHz
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	16-WFQFN Exposed Pad
Power - Output	6 dBm
Supplier Device Package	PG-TSNP-16-9
Type	TxRx Only
Voltage - Supply	3.3 V

BGT24LTR11 Series

Part	Power - Output	Current - Receiving	Voltage - Supply	Operating Temperature [Min]	Operating Temperature [Max]	Type	Package / Case	Frequency [Max]	Frequency [Min]	Supplier Device Package	Current - Transmitting	Mounting Type
Infineon Technologies BGT24LTR11N16E6327XTSA1	6 dBm	45 mA	3.3 V	-40 °C	85 °C	TxRx Only	16-WFQFN Exposed Pad	24.25 GHz	24 GHz	PG-TSNP-16-9	45 mA	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 7.76
		10	$ 5.28
		100	$ 3.87
		500	$ 3.40
	Digi-ReelÛ	1	$ 7.76
		10	$ 5.28
		100	$ 3.87
		500	$ 3.40
	Tape & Reel (TR)	3000	$ 3.40

Description

General part information

BGT24LTR11 Series

BGT24LTR11 is a silicon germanium radar MMIC for signal generation and reception, operating in the 24GHz to 24.25GHz ISM band. It is based on a 24GHz fundamental voltage controlled oscillator (VCO). The device was designed with doppler-radar applications in mind — as it is capable of keeping the transmit signal inside the ISM band without any external PLL — and may also be used in other types of radar such as FMCW or FSK. The device is manufactured in a 0.18 μm SiGe:C technology offering a cutoff frequency of 200GHz. It is packaged in a 16-pin leadless RoHS compliant TSNP package.
