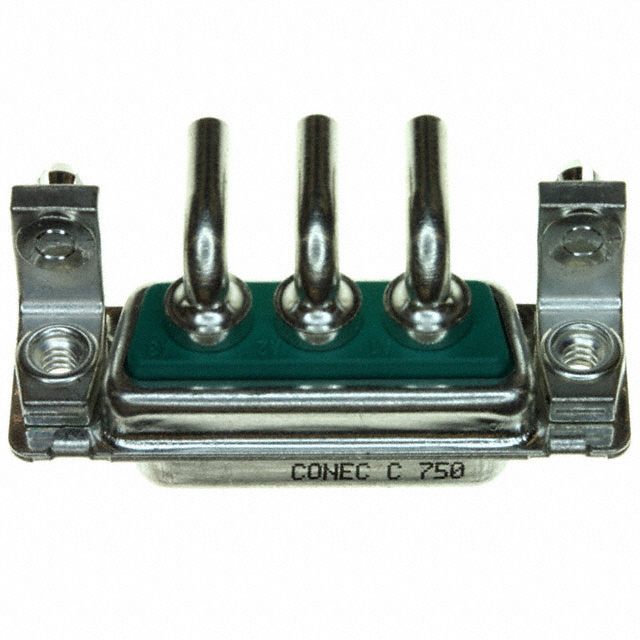

3003W3SXX56N40X

Active

Amphenol CONEC

CONN D-SUB RCPT 3POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3003W3SXX56N40X

Active

Amphenol CONEC

CONN D-SUB RCPT 3POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3003W3SXX56N40X

Backset Spacing	11.65 mm
Backset Spacing	0.459 "
Color	Green
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	20 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	3
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	2 (DA, A)
Shell Size, Connector Layout [custom]	3W3
Termination	Solder

3003W3S Series

Part	Shell Finish Thickness	Shell Finish Thickness	Contact Type	Number of Positions	Mounting Type	Mating Cycles	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Connector Type	Connector Style	Flange Feature	Number of Rows	Color	Operating Temperature [Min]	Operating Temperature [Max]	Note	Contact Finish	Contact Material	Material Flammability Rating	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Termination	Backset Spacing	Backset Spacing
Amphenol CONEC 3003W3SXX99A50X	8 µm	315 µin	Power	3	Through Hole	500	2 (DA A)	3W3	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle for Female Contacts	Combo D-Sub	Housing/Shell (4-40)	1	Green
Amphenol CONEC 3003W3SXX73N40X										Receptacle Female Sockets
Amphenol CONEC 3003W3SXX99A10X			Coax Power	3	Free Hanging (In-Line)		2 (DA A)	3W3	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle for Female Contacts	Combo D-Sub	Housing/Shell (Unthreaded)	1	Green	-55 °C	125 °C	Contacts Not Included
Amphenol CONEC 3003W3SXX69E40X			Power	3			2 (DA A)	3W3	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Female Sockets	Combo D-Sub		1	Green	-55 °C	125 °C		Gold	Copper Alloy	UL94 V-0	20 A	0.76 Ám	30 Áin
Amphenol CONEC 3003W3SXX56N40X			Power	3	Board Edge Right Angle Through Hole		2 (DA A)	3W3	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Female Sockets	Combo D-Sub	Housing/Shell (4-40)	1	Green	-55 °C	125 °C		Gold	Copper Alloy	UL94 V-0	20 A	0.76 Ám	30 Áin	Solder	11.65 mm	0.459 "
Amphenol CONEC 3003W3SXX71E20X										Receptacle Female Sockets
Amphenol CONEC 3003W3SXX69F40X										Receptacle Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 25.85
		10	$ 19.94
		25	$ 18.05
		40	$ 17.18
		80	$ 15.99
		230	$ 14.39
		440	$ 13.52

Description

General part information

3003W3S Series

3 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
