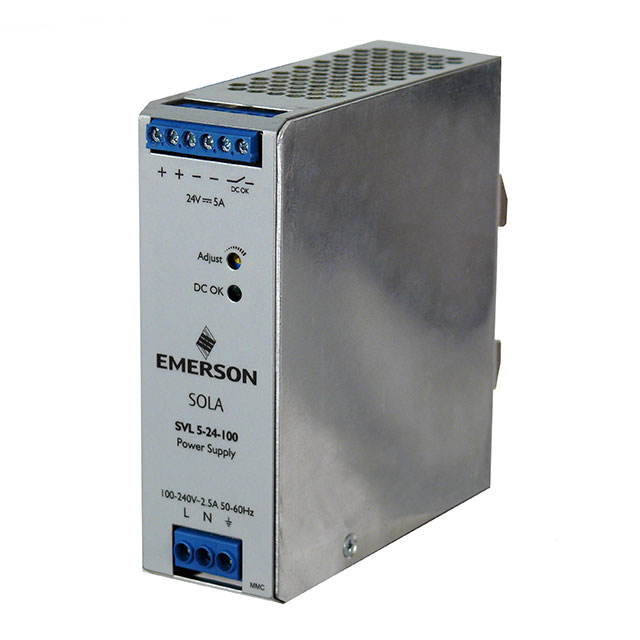

SVL524100
ActiveSolaHD
AC/DC DIN RAIL SUPPLY 24V 120W
Deep-Dive with AI
Search across all available documentation for this part.
SVL524100
ActiveSolaHD
AC/DC DIN RAIL SUPPLY 24V 120W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SVL524100 |
|---|---|
| AC Voltage - Input [Max] | 264 VAC |
| AC Voltage - Input [Min] | 85 VAC |
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | CE, cURus, cULus |
| Current - Output (Max) [Max] | 5 A |
| DC Voltage - Input (Max) [Max] | 375 V |
| DC Voltage - Input (Min) [Min] | 120 V |
| Efficiency | 88 % |
| Features | Universal Input |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Size / Dimension [x] | 4.63 in |
| Size / Dimension [x] | 117.6 mm |
| Size / Dimension [y] | 1.57 " |
| Size / Dimension [y] | 39.9 mm |
| Size / Dimension [z] | 4.84 in |
| Size / Dimension [z] | 122.9 mm |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 83.88 | |
| 10 | $ 73.73 | |||
| 25 | $ 70.03 | |||
| 50 | $ 67.37 | |||
| 100 | $ 64.80 | |||
Description
General part information
SVL524 Series
AC/DC DIN RAIL SUPPLY 24V 120W
