TE Connectivity Raychem Cable Protection

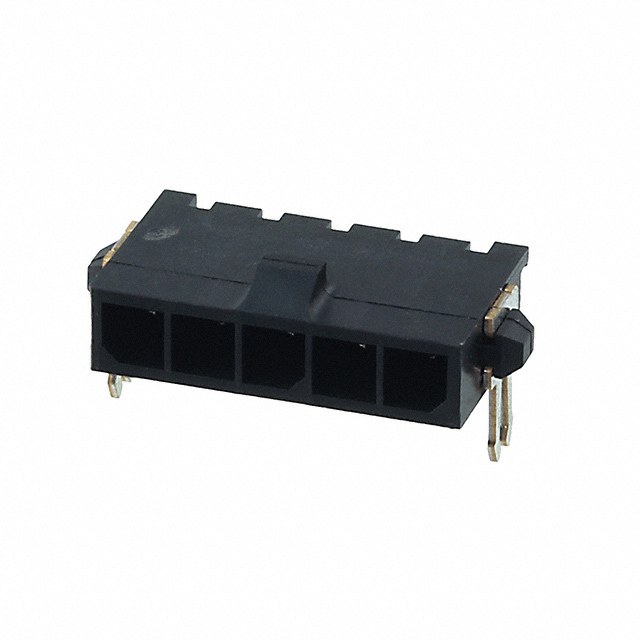

CONN HEADER SMD R/A 5POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1445056-5

Obsolete

TE Connectivity Raychem Cable Protection

CONN HEADER SMD R/A 5POS 3MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1445056-5

Applications	General Purpose
Connector Type	Header
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height	0.152 in
Insulation Height	3.85 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

1445056 Series

Part	Contact Material	Style	Insulation Material	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Termination	Mounting Type	Shrouding	Material Flammability Rating	Contact Shape	Insulation Color	Number of Rows	Contact Finish - Post	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Type	Voltage Rating	Contact Finish - Mating	Number of Positions
TE Connectivity Raychem Cable Protection 2-1445056-3	Brass	Board to Cable/Wire	Nylon Polyamide (PA)	Header	2.54 çm	100 çin	0.152 in	3.85 mm	Solder	Surface Mount Right Angle	Shrouded - 4 Wall	UL94 V-0	Square	Black	1	Tin	General Purpose	2.54 µm	100 µin	0.118 in	3 mm	Varies by Wire Gauge	Locking Ramp	-40 °C	105 ░C	All	Male Pin	250 VDC
TE Connectivity Raychem Cable Protection 1445056-3	Brass	Board to Cable/Wire	Nylon Polyamide (PA)	Header	2.54 çm	100 çin	0.152 in	3.85 mm	Solder	Surface Mount Right Angle	Shrouded - 4 Wall	UL94 V-0	Square	Black	1	Tin-Lead	General Purpose	2.54 µm	100 µin	0.118 in	3 mm	Varies by Wire Gauge	Locking Ramp	-40 °C	105 ░C	All	Male Pin	250 VDC	Tin-Lead
TE Connectivity Raychem Cable Protection 1445056-9	Brass	Board to Cable/Wire	Nylon Polyamide (PA)	Header	2.54 çm	100 çin	0.152 in	3.85 mm	Solder	Surface Mount Right Angle	Shrouded - 4 Wall	UL94 V-0	Square	Black	1	Tin-Lead	General Purpose	2.54 µm	100 µin	0.118 in	3 mm	Varies by Wire Gauge	Locking Ramp	-40 °C	105 ░C	All	Male Pin	250 VDC	Tin-Lead	9
TE Connectivity Raychem Cable Protection 1445056-2	Brass	Board to Cable/Wire	Nylon Polyamide (PA)	Header	2.54 çm	100 çin	0.152 in	3.85 mm	Solder	Surface Mount Right Angle	Shrouded - 4 Wall	UL94 V-0	Square	Black	1	Tin-Lead	General Purpose	2.54 µm	100 µin	0.118 in	3 mm	Varies by Wire Gauge	Locking Ramp	-40 °C	105 ░C	All	Male Pin	250 VDC	Tin-Lead	2
TE Connectivity Raychem Cable Protection 1-1445056-0	Brass	Board to Cable/Wire	Nylon Polyamide (PA)	Header	2.54 çm	100 çin	0.152 in	3.85 mm	Solder	Surface Mount Right Angle	Shrouded - 4 Wall	UL94 V-0	Square	Black	1	Tin-Lead	General Purpose	2.54 µm	100 µin	0.118 in	3 mm	Varies by Wire Gauge	Locking Ramp	-40 °C	105 ░C	All	Male Pin	250 VDC	Tin-Lead	10
TE Connectivity Raychem Cable Protection 1445056-5	Brass	Board to Cable/Wire	Nylon Polyamide (PA)	Header	2.54 çm	100 çin	0.152 in	3.85 mm	Solder	Surface Mount Right Angle	Shrouded - 4 Wall	UL94 V-0	Square	Black	1	Tin-Lead	General Purpose	2.54 µm	100 µin	0.118 in	3 mm	Varies by Wire Gauge	Locking Ramp	-40 °C	105 ░C	All	Male Pin	250 VDC	Tin-Lead
TE Connectivity Raychem Cable Protection 2-1445056-6	Brass	Board to Cable/Wire	Nylon Polyamide (PA)	Header	2.54 çm	100 çin	0.152 in	3.85 mm	Solder	Surface Mount Right Angle	Shrouded - 4 Wall	UL94 V-0	Square	Black	1	Tin	General Purpose	2.54 µm	100 µin	0.118 in	3 mm	Varies by Wire Gauge	Locking Ramp	-40 °C	105 ░C	All	Male Pin	250 VDC		6
TE Connectivity Raychem Cable Protection 1-1445056-1	Brass	Board to Cable/Wire	Nylon Polyamide (PA)	Header	2.54 çm	100 çin	0.152 in	3.85 mm	Solder	Surface Mount Right Angle	Shrouded - 4 Wall	UL94 V-0	Square	Black	1	Tin-Lead	General Purpose	2.54 µm	100 µin	0.118 in	3 mm	Varies by Wire Gauge	Locking Ramp	-40 °C	105 ░C	All	Male Pin	250 VDC	Tin-Lead	11
TE Connectivity Raychem Cable Protection 1-1445056-2	Brass	Board to Cable/Wire	Nylon Polyamide (PA)	Header	2.54 çm	100 çin	0.152 in	3.85 mm	Solder	Surface Mount Right Angle	Shrouded - 4 Wall	UL94 V-0	Square	Black	1	Tin-Lead	General Purpose	2.54 µm	100 µin	0.118 in	3 mm	Varies by Wire Gauge	Locking Ramp	-40 °C	105 ░C	All	Male Pin	250 VDC	Tin-Lead	12
TE Connectivity Raychem Cable Protection 3-1445056-0	Brass	Board to Cable/Wire	Nylon Polyamide (PA)	Header	2.54 çm	100 çin	0.152 in	3.85 mm	Solder	Surface Mount Right Angle	Shrouded - 4 Wall	UL94 V-0	Square	Black	1	Tin	General Purpose	2.54 µm	100 µin	0.118 in	3 mm	Varies by Wire Gauge	Locking Ramp	-40 °C	105 ░C	All	Male Pin	250 VDC		10
