STLQ020J25R

Active

STMicroelectronics

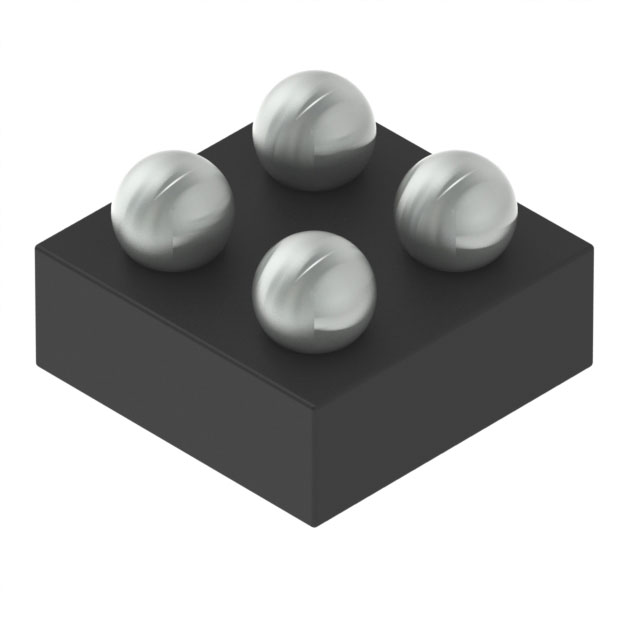

ULTRA-LOW QUIESCENT CURRENT LDO REGULATOR POSITIVE 2.5V 200MA 4-PIN FLIP-CHIP T/R

Search across all available documentation for this part.

Active

STMicroelectronics

ULTRA-LOW QUIESCENT CURRENT LDO REGULATOR POSITIVE 2.5V 200MA 4-PIN FLIP-CHIP T/R

Technical Specifications

Parameters and characteristics for this part

Specification	STLQ020J25R

Control Features	Enable
Current - Output	200 mA
Current - Quiescent (Iq)	1 µA
Current - Supply (Max) [Max]	150 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	4-UFBGA, FCBGA
Protection Features	Over Current, Over Temperature
PSRR [Max]	52 dB
PSRR [Min]	45 dB
Voltage - Input (Max) [Max]	5.5 V
Voltage - Output (Min/Fixed)	2.5 V
Voltage Dropout (Max) [Max]	0.16 V

200 mA ultra-low quiescent current LDO

Part	Current - Output	Current - Quiescent (Iq)	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Voltage Dropout (Max) [Max]	PSRR [Min]	PSRR [Max]	Number of Regulators	Control Features	Output Type	Voltage - Input (Max) [Max]	Mounting Type	Current - Supply (Max) [Max]	Package / Case	Voltage - Output (Min/Fixed)	Protection Features	Output Configuration
STMicroelectronics STLQ020PU28R	200 mA	1 µA	-40 °C	125 ¯C	6-DFN (2x2)	0.16 V	45 dB	52 dB	1	Enable	1.81 mOhm	5.5 V	Surface Mount	150 µA	6-VFDFN Exposed Pad	2.8 V	Over Current Over Temperature	Positive
STMicroelectronics STLQ020J25R	200 mA	1 µA	-40 °C	125 ¯C		0.16 V	45 dB	52 dB	1	Enable	1.81 mOhm	5.5 V	Surface Mount	150 µA	4-UFBGA FCBGA	2.5 V	Over Current Over Temperature	Positive
STMicroelectronics STLQ020PU33R	200 mA	1 µA	-40 °C	125 ¯C	6-DFN (2x2)	0.16 V	45 dB	52 dB	1	Enable	1.81 mOhm	5.5 V	Surface Mount	150 µA	6-VFDFN Exposed Pad	3.3 V	Over Current Over Temperature	Positive
STMicroelectronics STLQ020J30R	200 mA	1 µA	-40 °C	125 ¯C		0.16 V	45 dB	52 dB	1	Enable	1.81 mOhm	5.5 V	Surface Mount	150 µA	4-UFBGA FCBGA		Over Current Over Temperature	Positive
STMicroelectronics STLQ020C22R	200 mA	1 µA	-40 °C	125 ¯C	SOT-323-5	0.16 V	45 dB	52 dB	1	Enable	1.81 mOhm	5.5 V	Surface Mount	150 µA	5-TSSOP SC-70-5 SOT-353	2.2 V	Over Current Over Temperature	Positive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

The STLQ020 is a 200 mA low-dropout voltage regulator, able to work with an input voltage ranging from 2 V to 5.5 V.

The typical dropout voltage at maximum load is 160 mV.

The ultra-low quiescent current, which is just 0.3 μA at no load, extends battery-life of applications requiring very long standby time.
