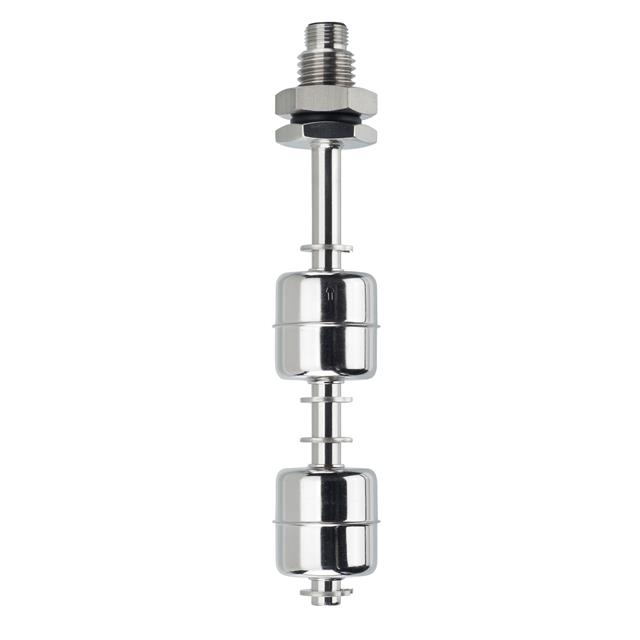

SSF67A50A200PM12

Active

Sensata Technologies

DL LVL FLOATSW 227MM TOTAL L

Search across all available documentation for this part.

Active

Sensata Technologies

DL LVL FLOATSW 227MM TOTAL L

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSF67A50A200PM12	SSF67A50 Series

Current	600 mA	600 mA
Material - Housing & Prism	316 Stainless Steel	316 Stainless Steel
Minimum Liquid Specific Gravity [Min]	0.8	0.8
Mounting Type	M16x2 Thread, Panel Mount	M16x2 Thread, Panel Mount
Operating Temperature	135 °C	135 °C
Output Configuration	SPST-NO	SPST-NO
Output Type	Switch (2) (Dual Float)	Switch (2) (Dual Float)
Switch Actuation Level	7.874 ", 1.969 "	1.969 - 7.874 "
Switch Actuation Level	200 mm, 50 mm	1.969 - 250 mm
Switch Actuation Level	-	1.969 - 9.842 in
Type	Liquid	Liquid
Voltage Rating	250 VAC, 120 VDC	120 - 250 VAC

DL LVL FLOATSW 277MM TOTAL L

Part	Minimum Liquid Specific Gravity [Min]	Switch Actuation Level	Switch Actuation Level	Voltage Rating	Output Configuration	Operating Temperature	Mounting Type	Type	Material - Housing & Prism	Current	Output Type	Switch Actuation Level
Sensata Technologies SSF67A50A250PM12	0.8	1.969 in, 9.842 in	50 mm, 250 mm	120 VDC, 250 VAC	SPST-NO	135 °C	M16x2 Thread, Panel Mount	Liquid	316 Stainless Steel	600 mA	Switch (2) (Dual Float)
Sensata Technologies SSF67A50A100	0.8		1.969 ", 3.937 ", 50 mm, 100 mm	120 VDC, 250 VAC	SPST-NO	135 °C	M16x2 Thread, Panel Mount	Liquid	316 Stainless Steel	600 mA	Switch (2) (Dual Float)
Sensata Technologies SSF67A50A200PM12	0.8		50 mm, 200 mm	120 VDC, 250 VAC	SPST-NO	135 °C	M16x2 Thread, Panel Mount	Liquid	316 Stainless Steel	600 mA	Switch (2) (Dual Float)	1.969 ", 7.874 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 299.27

General part information

DL LVL FLOATSW 227MM TOTAL L

Technical documentation and resources

No documents available
