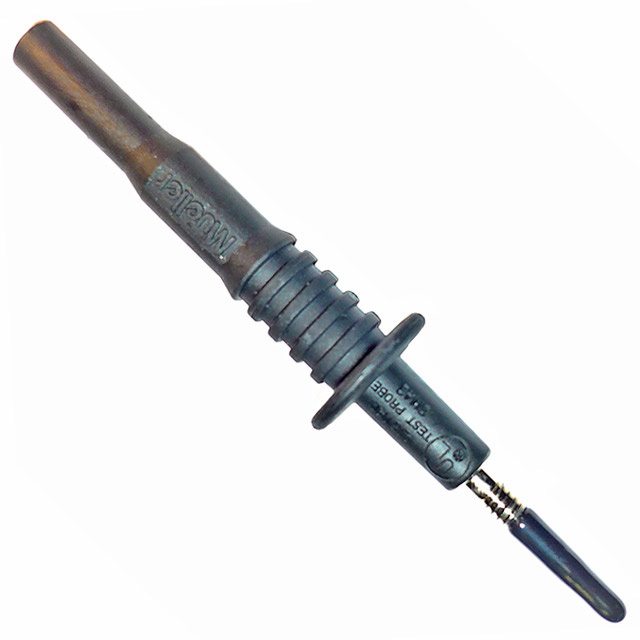

BU-26106-0

Active

MUELLER ELECTRIC

INSULATED PLUG-ON TEST PROD, BLACK ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MUELLER ELECTRIC

INSULATED PLUG-ON TEST PROD, BLACK ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

TEST PROBE CONNECTOR, TEST PROD 8-32 THREAD, INSULATED PLUG-ON

Part	Length - Overall	Length - Overall [x]	Ratings	Material - Body	Quantity	Color	Current Rating (Amps)	Voltage Rating	Connection Type	Tip Type [diameter]	Tip Type	Tip Type [diameter]	Material - Tip
MUELLER ELECTRIC BU-26106-2	83.82 mm	3.3 "	IEC 1010	Nylon	1 Box	Red	10 A	1000 VDC	Banana, Female Socket (Jack)	2.03 mm	8-32 Thread, Sharp Tip	0.08 in	Brass, Nickel Plated
MUELLER ELECTRIC BU-26106-0	83.82 mm	3.3 "	IEC 1010	Nylon	1 Box	Black	20 A	1000 VDC	Banana, Female Socket (Jack)	2.03 mm	8-32 Thread, Sharp Tip	0.08 in	Brass, Nickel Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 A Sharp Tip, 0.080" (2.03mm) Dia, 8-32 Thread Black
