204-0004-01

Active

Schmartboard, Inc.

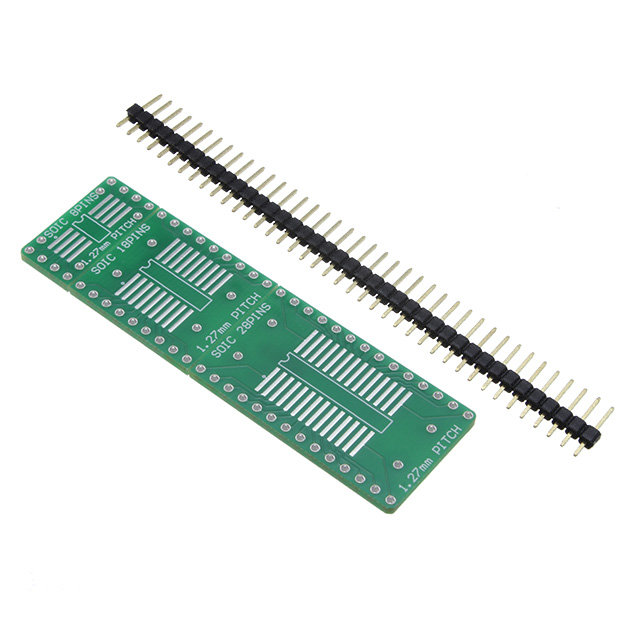

SCHMARTBOARDEZ 1.27MM PITCH SOIC

Search across all available documentation for this part.

Active

Schmartboard, Inc.

SCHMARTBOARDEZ 1.27MM PITCH SOIC

Technical Specifications

Parameters and characteristics commom to parts in this series

TWO 204-0004-01 PLUS A 830 TEST

Part	Package Accepted	Number of Positions	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Pitch [x]	Pitch [x]	Proto Board Type
Schmartboard, Inc. 204-0004-31	SOIC	8, 18, 28	2.69 in	20.07 mm	0.79 "	68.33 mm	0.05 in	1.27 mm	SMD to DIP
Schmartboard, Inc. 204-0004-01	SOIC		2.69 in	20.07 mm	0.79 "	68.33 mm	0.05 in	1.27 mm	SMD to DIP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 6.00

General part information

SCHMARTBOARDEZ 1.27MM PITCH SOIC
