UPW50B250RV

Active

TE Connectivity Passive Product

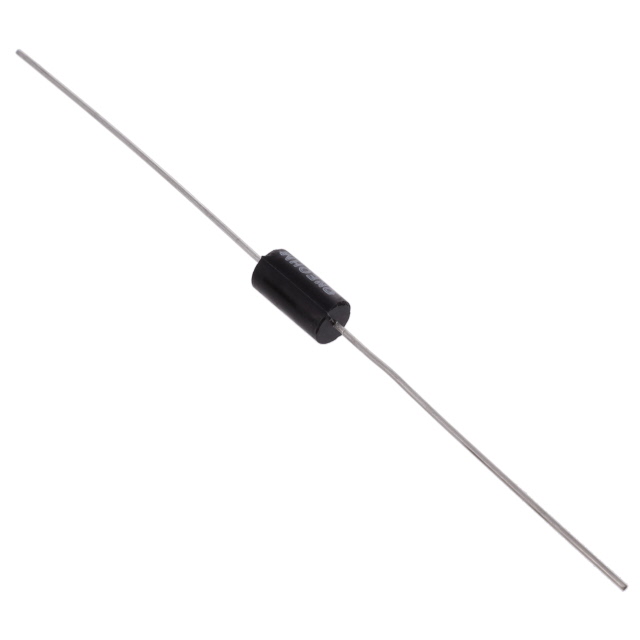

RES 250 OHM 0.1% 1/2W AXIAL

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 250 OHM 0.1% 1/2W AXIAL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

250 Ohms ±0.1% 0.5W, 1/2W Through Hole Resistor Axial Wirewound

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RES 50K OHM 0.1% 1/2W AXIAL

Part	Power (Watts)	Power (Watts)	Tolerance	Package / Case	Number of Terminations	Supplier Device Package	Composition	Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient
TE Connectivity Passive Product UPW50B50KV	0.5 W	0.5 W	0.1 %	Axial	2	Axial	Wirewound	50 kOhms	145 °C	-55 °C	5 ppm/°C
TE Connectivity Passive Product UPW50B50RV	0.5 W	0.5 W	0.1 %	Axial	2	Axial	Wirewound	50 Ohms	145 °C	-55 °C	5 ppm/°C
TE Connectivity Passive Product UPW50B100RV	0.5 W	0.5 W	0.1 %	Axial	2	Axial	Wirewound	100 Ohms	145 °C	-55 °C	5 ppm/°C
TE Connectivity Passive Product UPW50B20KV	0.5 W	0.5 W	0.1 %	Axial	2	Axial	Wirewound	20 kOhms	145 °C	-55 °C	5 ppm/°C
TE Connectivity Passive Product UPW50B500RV	0.5 W	0.5 W	0.1 %	Axial	2	Axial	Wirewound	500 Ohms	145 °C	-55 °C	5 ppm/°C
TE Connectivity Passive Product UPW50B10RV	0.5 W	0.5 W	0.1 %	Axial	2	Axial	Wirewound	10 Ohms	145 °C	-55 °C	5 ppm/°C
TE Connectivity Passive Product UPW50B2K0V	0.5 W	0.5 W	0.1 %	Axial	2	Axial	Wirewound	2 kOhms	145 °C	-55 °C	5 ppm/°C
TE Connectivity Passive Product UPW50B330RV	0.5 W	0.5 W	0.1 %	Axial	2	Axial	Wirewound	330 Ohms	145 °C	-55 °C	5 ppm/°C
TE Connectivity Passive Product UPW50B1K0V	0.5 W	0.5 W	0.1 %	Axial	2	Axial	Wirewound	1000 Ohms	145 °C	-55 °C	5 ppm/°C
TE Connectivity Passive Product UPW50B250RV	0.5 W	0.5 W	0.1 %	Axial	2	Axial	Wirewound	250 Ohms	145 °C	-55 °C	5 ppm/°C
