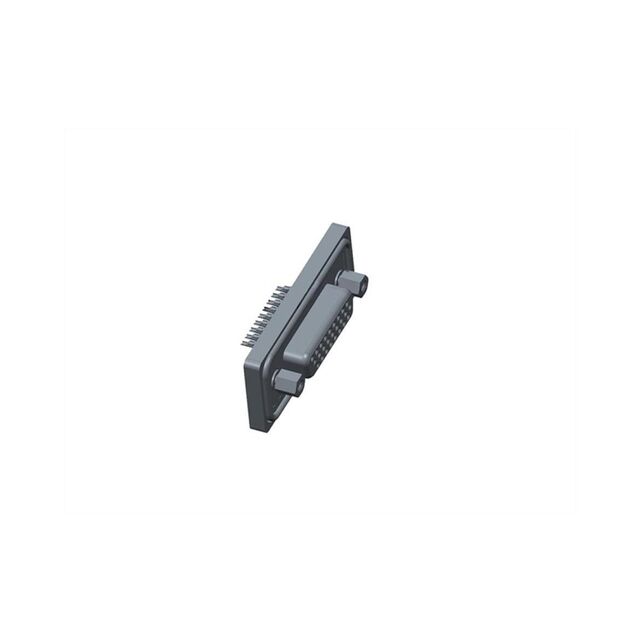

HDB-26PFFS-SL8001

Active

Amphenol LTW

D-SUB, HIGH DENSITY, METAL, 2A, 26 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT WITHOUT BOARD LOCK, SCREW THREAD, SOLDER, RE

Search across all available documentation for this part.

Active

Amphenol LTW

D-SUB, HIGH DENSITY, METAL, 2A, 26 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT WITHOUT BOARD LOCK, SCREW THREAD, SOLDER, RE

Technical Specifications

Parameters and characteristics for this part

Specification	HDB-26PFFS-SL8001

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	2 A
Features	Shielded
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP68 - Dust Tight, Waterproof
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	24 AWG

Part	Color	Contact Type	Features	Ingress Protection	Dielectric Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Finish Thickness	Contact Finish	Shell Size, Connector Layout	Shell Size, Connector Layout	Flange Feature	Contact Material	Number of Positions	Connector Style	Shell Material, Finish	Connector Type	Wire Gauge [Min]	Wire Gauge [Max]
Amphenol LTW HDB-26PFFS-QL8001	Black	Signal	Automated Latch Gasket Shielded	IP68 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	2 A	-40 °C	105 ░C	3	Flash	Gold	2	(DA A) High Density	Female Screwlock (4-40) Mating Side	Copper Alloy	26	D-Sub High Density	Nickel Plated Steel	Receptacle Female Sockets
Amphenol LTW HDB-26PFFS-SL8001	Black	Signal	Shielded	IP68 - Dust Tight Waterproof		2 A	-40 °C	105 ░C	3		Gold	2	(DA A) High Density	Female Screwlock (4-40) Mating Side	Copper Alloy	26	D-Sub High Density	Nickel Plated Steel	Receptacle Female Sockets	24 AWG	28 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position D-Sub, High Density Receptacle, Female Sockets Connector
