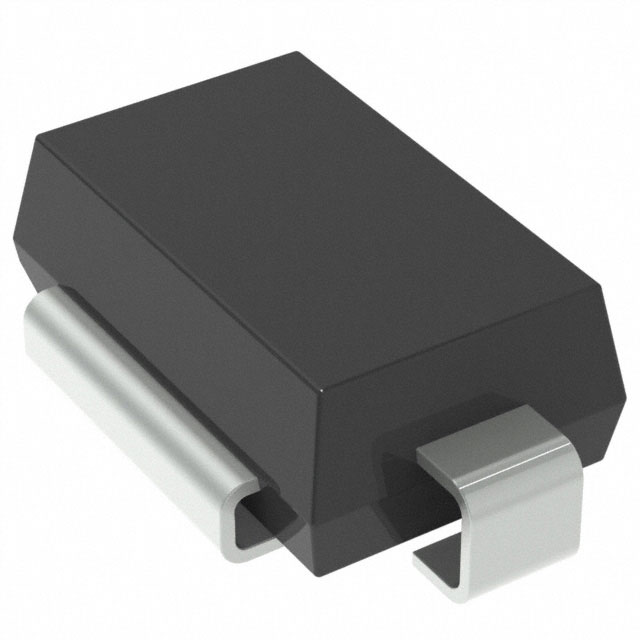

SM8S33A-Q

Active

Bourns Inc.

TVS DIODE 33VWM 53.3VC DO218

Search across all available documentation for this part.

Active

Bourns Inc.

TVS DIODE 33VWM 53.3VC DO218

Technical Specifications

Parameters and characteristics for this part

Specification	SM8S33A-Q

Current - Peak Pulse (10/1000µs)	124 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	DO-218AB
Power - Peak Pulse	6600 W
Power - Peak Pulse	6.6 kW
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	DO-218
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	36.7 V
Voltage - Clamping (Max) @ Ipp	53.3 V
Voltage - Reverse Standoff (Typ)	33 V

Part	Voltage - Breakdown (Min) [Min]	Power - Peak Pulse	Power - Peak Pulse	Current - Peak Pulse (10/1000µs)	Power Line Protection	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Package / Case	Grade	Type	Mounting Type	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp	Voltage - Reverse Standoff (Typ)	Supplier Device Package	Voltage - Clamping (Max) @ Ipp [Max]
Bourns Inc. SM8S33A-Q	36.7 V	6600 W	6.6 kW	124 A		-55 °C	175 ░C	AEC-Q101	DO-218AB	Automotive	Zener	Surface Mount	1	53.3 V	33 V	DO-218
Bourns Inc. SM8S36A-Q	40 V	6600 W	6.6 kW	114 A		-55 °C	175 ░C	AEC-Q101	DO-218AB	Automotive	Zener	Surface Mount	1		36 V	DO-218	58.1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

53.3V Clamp 124A Ipp Tvs Diode Surface Mount DO-218
