10125023-320032ALF
ActiveAmphenol ICC (FCI)
CONN EDGE DUAL FML 60POS 0.050
Deep-Dive with AI
Search across all available documentation for this part.

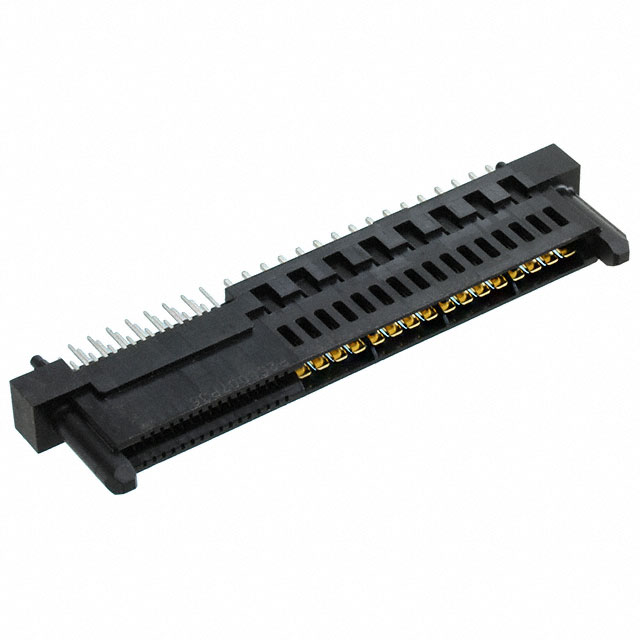

10125023-320032ALF
ActiveAmphenol ICC (FCI)
CONN EDGE DUAL FML 60POS 0.050
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10125023-320032ALF |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | GXT™, Gold or Gold |
| Contact Material | Copper Alloy |
| Features | Guide Pin, Board Guide |
| Gender | Female |
| Material - Insulation | Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions [custom] | 60 |
| Number of Positions [custom] | 36 |
| Number of Positions/Bay/Row [custom] | 18 |
| Number of Positions/Bay/Row [custom] | 12 |
| Number of Rows | 2 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Read Out | Dual |
| Termination | Solder |
10125023 Series
| Part | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Material - Insulation | Features | Termination | Mounting Type | Card Thickness | Card Thickness | Number of Rows | Color | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Contact Finish | Gender | Card Type | Read Out | Contact Material | Pitch [x] | Pitch [x] | Number of Positions [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions | Number of Positions/Bay/Row | Number of Positions [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 4 | 12 | 8 | Thermoplastic | Board Guide Guide Pin | Press-Fit | Through Hole | 0.062 in | 1.57 mm | 2 | Black | 4 | 2 | Gold or Gold GXT™ | Female | Non Specified - Dual Edge | Dual | Copper Alloy | 0.05 in | 1.27 mm | ||||||||||
Amphenol ICC (FCI) | 36 | Thermoplastic | Board Guide Guide Pin | Solder | Through Hole | 0.062 in | 1.57 mm | 2 | Black | Gold or Gold GXT™ | Female | Non Specified - Dual Edge | Dual | Copper Alloy | 0.05 in | 1.27 mm | 60 | 18 | 12 | |||||||||||
Amphenol ICC (FCI) | 8 | 12 | Thermoplastic | Board Guide Guide Pin | Solder | Through Hole | 0.062 in | 1.57 mm | 2 | Black | Gold or Gold GXT™ | Female | Non Specified - Dual Edge | Dual | Copper Alloy | 0.05 in | 1.27 mm | 20 | 4 6 | |||||||||||
Amphenol ICC (FCI) | 4 | Thermoplastic | Board Guide Guide Pin | Press-Fit | Through Hole | 0.062 in | 1.57 mm | 2 | Black | 2 | Gold or Gold GXT™ | Female | Non Specified - Dual Edge | Dual | Copper Alloy | 0.05 in | 1.27 mm | 16 | 8 | |||||||||||
Amphenol ICC (FCI) | Thermoplastic | Board Guide Guide Pin | Press-Fit | Through Hole | 0.062 in | 1.57 mm | 2 | Black | 16 | Gold or Gold GXT™ | Female | Non Specified - Dual Edge | Dual | Copper Alloy | 0.05 in | 1.27 mm | 64 | 16 | 32 | 32 | ||||||||||
Amphenol ICC (FCI) | 36 | Thermoplastic | Board Guide Guide Pin | Solder | Through Hole | 0.062 in | 1.57 mm | 2 | Black | Gold or Gold GXT™ | Female | Non Specified - Dual Edge | Dual | Copper Alloy | 0.05 in | 1.27 mm | 60 | 18 | 12 | |||||||||||
Amphenol ICC (FCI) | 32 | 28 | Thermoplastic | Board Guide Guide Pin | Solder | Through Hole | 0.062 in | 1.57 mm | 2 | Black | 14 | 16 | Gold or Gold GXT™ | Female | Non Specified - Dual Edge | Dual | Copper Alloy | 0.05 in | 1.27 mm | 60 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 324 | $ 9.42 | |
Description
General part information
10125023 Series
60 (24 + 36 Power) Position Female Connector Non Specified - Dual Edge Gold or Gold, GXT™ 0.050" (1.27mm) Black
