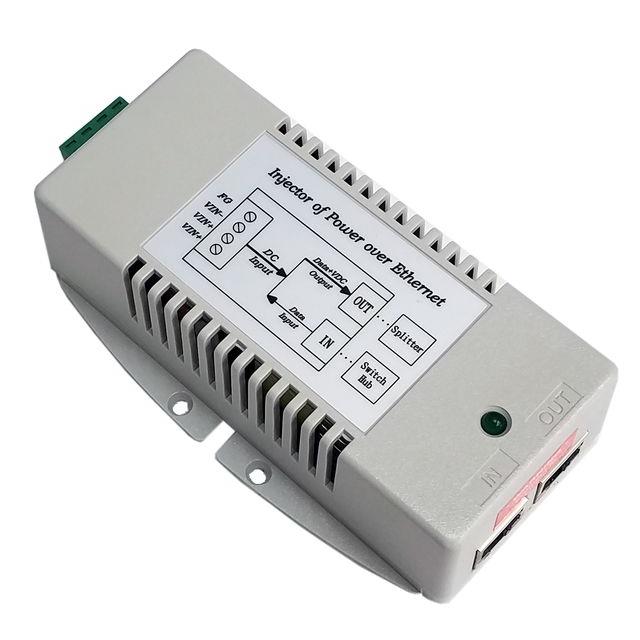

TP-DCDC-2456GD-VHP

Active

Tycon Systems Inc.

DC/DC CONVERTER 56V 70W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Application of POE

TP-DCDC-2456GD-VHP

Active

Tycon Systems Inc.

DC/DC CONVERTER 56V 70W

Deep-Dive with AI

DocumentsDatasheet Application of POE

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 153.08
	Retail Package	1	$ 164.95

Description

General part information

TP-DCDC Series

Power Over Ethernet (POE) Port Data Rate

Documents

Technical documentation and resources

Datasheet

Application of POE

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TP-DCDC-2456GD-VHP	TP-DCDC Series

Approval Agency	FCC, TUV, CSA, TUV, FCC	FCC, TUV, CSA, TUV, FCC
Compliance	IEEE802.3at	IEEE802.3at, IEEE802.3af, IEEE802.3bt
Current - Output	1.25 A	1 - 900 A
Data Rate	-	10 - 1000 Mbps
Data Rate	-	10 Mbps
Data Rate	-	100 Mbps
Efficiency	80 %	72 - 85 %
Features	OTP, SCP, OVP, OCP	SCP, OCP, OVP, OTP
Input Connector	RJ45 (Data, Power)	RJ45 (Data, Power)
Mounting Type	Chassis Mount	Chassis Mount, Desktop
Note	-	AC Power Cord Included
Number of Ports	2	1 - 2
Operating Temperature [Max]	60 °C	50 - 70 °C
Operating Temperature [Min]	-30 ░C	-40 - -30 °C
Output Connector	RJ45 (Data, Power)	RJ45 (Data, Power), USB (Power)
Power (Watts) - Per Port	70 W	17 - 70 W
Size / Dimension	-	75 - 76.2 mm
Size / Dimension	-	35.6 - 38 mm
Size / Dimension [x]	124.5 mm	86.4 - 125 mm
Size / Dimension [x]	4.9 in	3.4 - 4.92 in
Size / Dimension [y]	76.2 mm	76.2 - 88.9 mm
Size / Dimension [y]	3 "	2.95 - 3.5 "
Size / Dimension [z]	38.1 mm	38.1 - 39.9 mm
Size / Dimension [z]	1.5 "	1.4 - 1.57 "
Standard Number	60950-1	60950-1, 62368-1
Type	Passive Injector	Passive Injector
Voltage - Input	-	5 VDC
Voltage - Input [Max]	36 V	15 - 72 V
Voltage - Input [Min]	18 V	9 - 36 V
Voltage - Output	56 V	24 - 56 V

TP-DCDC Series

DC/DC CONVERTER 56V 70W

Part	Power (Watts) - Per Port	Approval Agency	Number of Ports	Efficiency	Output Connector	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Standard Number	Voltage - Output	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output	Features	Compliance	Data Rate	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input	Data Rate [Min]	Data Rate [Max]	Note
Tycon Systems Inc. TP-DCDC-2456G-VHP	70 W	CSA, FCC, FCC, TUV, TUV	2	80 %	RJ45 (Data, Power)	-40 °C	70 °C	Passive Injector	36 V	18 V	RJ45 (Data, Power)	60950-1	56 V	Chassis Mount	124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "	1.25 A	OCP, OVP, SCP
Tycon Systems Inc. TP-DCDC-4848GD-HP		FCC, TUV		75 %		-30 ░C	60 °C							Chassis Mount	124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "
Tycon Systems Inc. TP-DCDC-2448G-HP		CSA, FCC, TUV	2	75 %		-30 ░C	60 °C	Passive Injector	36 V	18 V	RJ45 (Data, Power)	60950-1	56 V	Chassis Mount	124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "	900 mA	OCP, OVP, SCP	IEEE802.3af, IEEE802.3at	10 Mbps, 100 Mbps, 1000 Mbps
Tycon Systems Inc. TP-DCDC-4848-HP	35 W	CSA, FCC, FCC, TUV, TUV	2	75 %	RJ45 (Data, Power)	-30 ░C	60 °C	Passive Injector	72 V	36 V	RJ45 (Data, Power)	60950-1	56 V	Chassis Mount	124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "		OCP, OVP, SCP	IEEE802.3at
Tycon Systems Inc. TP-DCDC-4856GD-VHP		FCC, TUV		80 %		-30 ░C	60 °C							Chassis Mount	124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "
Tycon Systems Inc. TP-DCDC-2456GD-BT	70 W	CSA, FCC, TUV	2	80 %	RJ45 (Data, Power)	-40 °C	70 °C	Passive Injector	36 V	18 V	RJ45 (Data, Power)	60950-1	56 V	Chassis Mount	124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "	1.25 A	OCP, OVP, SCP	IEEE802.3bt
Tycon Systems Inc. TP-DCDC-4824G	24 W	CSA, FCC, TUV	2	75 %	RJ45 (Data, Power)	-30 ░C	60 °C	Passive Injector	72 V	36 V	RJ45 (Data, Power)	60950-1	24 V	Chassis Mount	86.4 mm			1.4 "	3.4 "	3 "	1 A	OCP, OVP, SCP	IEEE802.3af	10 Mbps, 100 Mbps, 1000 Mbps	76.2 mm	35.6 mm
Tycon Systems Inc. TP-DCDC-2USB-24			1	72 %	USB (Power)	-30 ░C	50 °C	Passive Injector			RJ45 (Data, Power)		24 V	Chassis Mount	86.4 mm			1.4 "	3.4 "	3 "	500 mA	OCP, OVP, SCP			76.2 mm	35.6 mm	5 VDC	10 Mbps	100 Mbps	AC Power Cord Included
Tycon Systems Inc. TP-DCDC-1248GD	17 W	CSA, FCC, TUV	2	75 %	RJ45 (Data, Power)	-30 ░C	60 °C	Passive Injector	36 V	9 VDC	RJ45 (Data, Power)	60950-1	48 V	Chassis Mount	86.4 mm			1.4 "	3.4 "	3 "	350 mA	OCP, OVP, SCP	IEEE802.3af	10 Mbps, 100 Mbps, 1000 Mbps	76.2 mm	35.6 mm
Tycon Systems Inc. TP-DCDC-2456GD-VHP	70 W	CSA, FCC, FCC, TUV, TUV	2	80 %	RJ45 (Data, Power)	-30 ░C	60 °C	Passive Injector	36 V	18 V	RJ45 (Data, Power)	60950-1	56 V	Chassis Mount	124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "	1.25 A	OCP, OTP, OVP, SCP	IEEE802.3at
