IM523S6AXKMA1

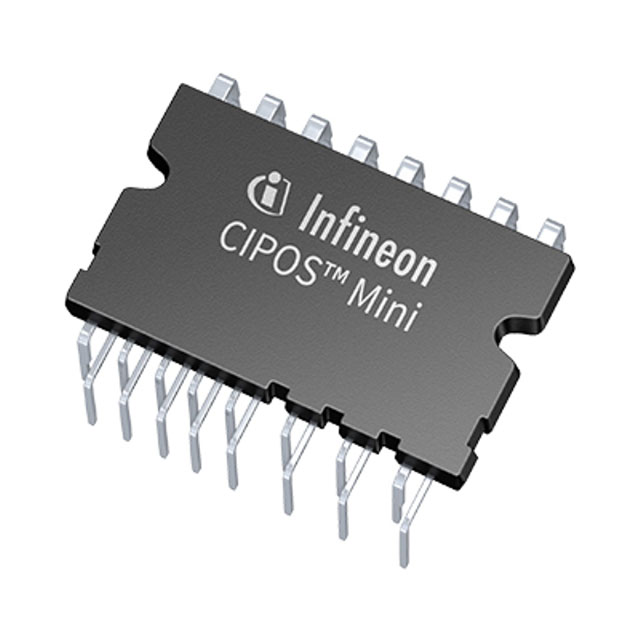

ActiveTHE IM523-S6A IS A CIPOS™ MINI 600 V, 6 A THREE-PHASE INTELLIGENT POWER MODULE (DIP 36X21)
Deep-Dive with AI
Search across all available documentation for this part.
IM523S6AXKMA1
ActiveTHE IM523-S6A IS A CIPOS™ MINI 600 V, 6 A THREE-PHASE INTELLIGENT POWER MODULE (DIP 36X21)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IM523S6AXKMA1 |
|---|---|
| Applications | Appliance |
| Current - Output | 12 A |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Motor Type - Stepper | Multiphase |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Half Bridge (3) |
| Package / Case | 24-PowerDIP Module |
| Package / Case | 1.028 in, 26.1 mm |
| Supplier Device Package | 24-DIP |
| Technology | IGBT |
| Voltage - Load [Max] | 450 V |
| Voltage - Load [Min] | 0 V |
| Voltage - Supply [Max] | 17.5 V |
| Voltage - Supply [Min] | 13 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
IM523S6 Series
CIPOS™ Mini600 V, 6 A three-phase TRENCHSTOP™ RCD2IGBTbasedintelligent power modulewith open emitter in DIP 36x21. It is designed to control three-phase motors in variable speed drive in low and medium power applications for majorhome appliance,HVAC(heating,ventilation, andair conditioning), as well asindustrial fananddrives. Our leading-edge RC-Drives IGBTs, TRENCHSTOP™ RCD2 are combined with a fully-featuredSOI gate driverto deliver excellent performance both in cost and power loss
