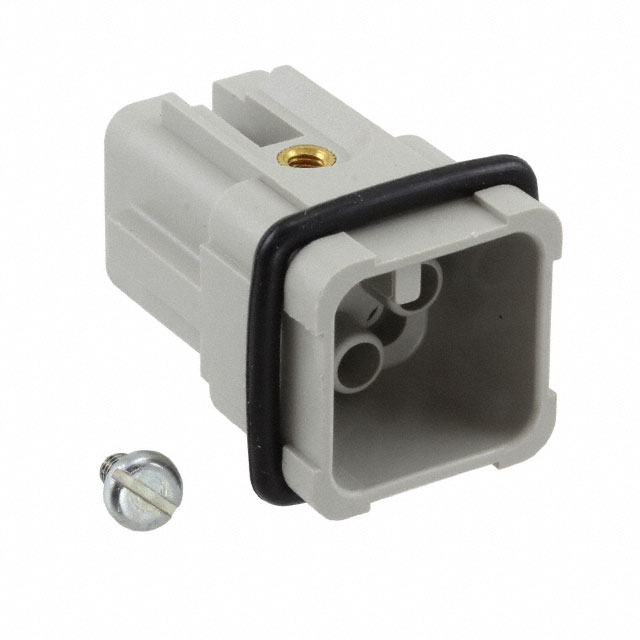

C14610A0070002

Active

Amphenol Tuchel Industrial

INSERT MALE 7POS+1GND CRIMP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT MALE 7POS+1GND CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	C14610A0070002

Color	Gray
Connector Type	Insert without Contacts
Contact Type	C146 D, C 16-3, M, heavy\|mate®
Current Rating (Amps)	15 A
Gender	Male
Housing Material	Polyester, Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Number of Positions	7+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	A3/4
Termination Style	Crimp
Voltage Rating	600 V

Part	Voltage Rating	Contact Type	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Termination Style	Connector Type	Current Rating (Amps)	Color	Size	Material Flammability Rating	Number of Positions
Amphenol Tuchel Industrial C14610A0070002C	600 V	C 16-3 C146 D heavy\|mate® M	Male	125 °C	-40 °C	Polybutylene Terephthalate (PBT) Polyester	Crimp	Insert without Contacts	15 A	Gray	A3/4	UL94 V-0	7+Ground
Amphenol Tuchel Industrial C14610A00750012	400 V	C146 D DD heavy\|mate® M	Male	125 °C	-40 °C	Polycarbonate (PC)	Crimp	Insert without Contacts		Gray	A3	UL94 V-0	7+Ground
Amphenol Tuchel Industrial C14610A0070002	600 V	C 16-3 C146 D heavy\|mate® M	Male	125 °C	-40 °C	Polybutylene Terephthalate (PBT) Polyester	Crimp	Insert without Contacts	15 A	Gray	A3/4	UL94 V-0	7+Ground

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Gray 7+Ground Position Crimp
