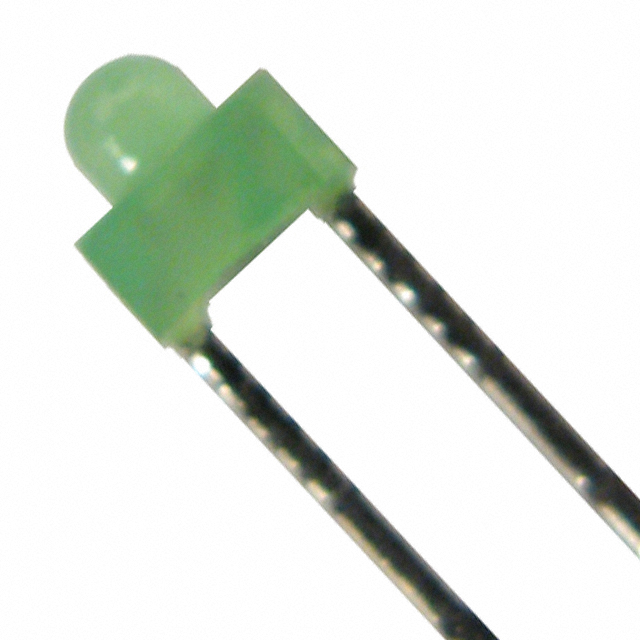

XLVG61D
ActiveSunLED
LED GREEN DIFFUSED 1.8MM T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XLVG61D
ActiveSunLED
LED GREEN DIFFUSED 1.8MM T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XLVG61D |
|---|---|
| Color | Green |
| Current - Test | 20 mA |
| Height (Max) [Max] | 4.35 mm |
| Lens Color | Green |
| Lens Size [diameter] | 1.8 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 79 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension [x] | 3.3 mm |
| Size / Dimension [y] | 2.4 mm |
| Supplier Device Package | 1.8 mm |
| Viewing Angle [custom] | 90 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 570 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.41 | |
| 10 | $ 0.27 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| 2000 | $ 0.09 | |||
| 5000 | $ 0.09 | |||
| 10000 | $ 0.08 | |||
| 25000 | $ 0.07 | |||
Description
General part information
XLVG61 Series
Green 570nm LED Indication - Discrete 2.1V Radial
