SRP1245A-6R8M

Active

Bourns Inc.

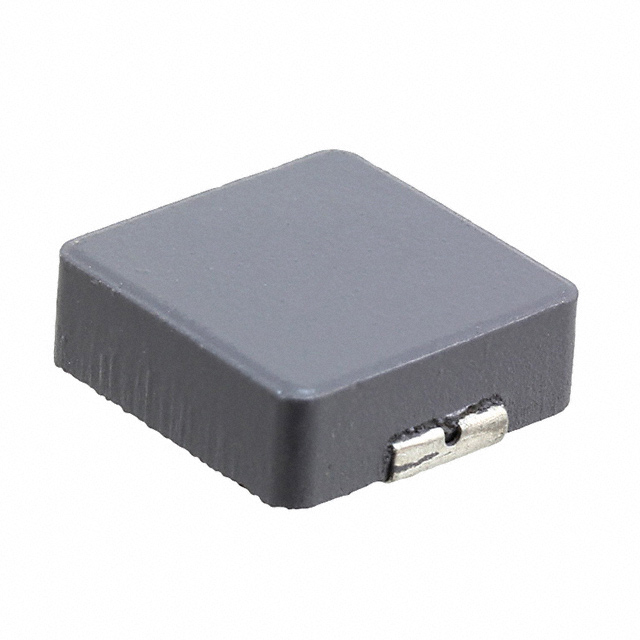

POWER INDUCTOR (SMD), 6.8 ΜH, 11 A, SHIELDED, 21 A, SRP1245A SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSRP Series Bulletin Datasheet +2

SRP1245A-6R8M

Active

Bourns Inc.

POWER INDUCTOR (SMD), 6.8 ΜH, 11 A, SHIELDED, 21 A, SRP1245A SERIES

Deep-Dive with AI

DocumentsSRP Series Bulletin Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRP1245A-6R8M

Current - Saturation (Isat)	21 A
Current Rating (Amps)	11 A
DC Resistance (DCR) [Max]	18.5 mOhm
Frequency - Self Resonant	12 MHz
Height - Seated (Max) [Max] [z]	0.197 in
Height - Seated (Max) [Max] [z]	5 mm
Inductance	6.8 µH
Inductance Frequency - Test	100 kHz
Material - Core	Carbonyl Powder
Mounting Type	Surface Mount
Package / Case	Nonstandard
Q @ Freq	100 kHz, 20
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	13.5 mm
Size / Dimension [x]	0.531 in
Size / Dimension [y]	0.492 "
Size / Dimension [y]	12.5 mm
Tolerance	20 %
Type	Wirewound, Drum Core

SRP1245A Series

Part	Inductance	Frequency - Self Resonant	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Ratings	Type	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Saturation (Isat)	Material - Core	Mounting Type	Q @ Freq	Shielding	Current Rating (Amps)	DC Resistance (DCR)
Bourns Inc. SRP1245A-6R8M	6.8 µH	12 MHz	18.5 mOhm	100 kHz	0.197 in	5 mm	20 %	AEC-Q200	Drum Core Wirewound	Nonstandard	0.492 "	13.5 mm	0.531 in	12.5 mm	21 A	Carbonyl Powder	Surface Mount	20 100 kHz	Shielded	11 A
Bourns Inc. SRP1245A-1R8M	1.8 µH	27 MHz	4.9 mOhm	100 kHz	0.197 in	5 mm	20 %	AEC-Q200	Drum Core Wirewound	Nonstandard	0.492 "	13.5 mm	0.531 in	12.5 mm	40 A	Carbonyl Powder	Surface Mount	20 100 kHz	Shielded	21 A
Bourns Inc. SRP1245A-R82M	820 nH	45 MHz	2.1 mOhm	100 kHz	0.197 in	5 mm	20 %	AEC-Q200	Drum Core Wirewound	Nonstandard	0.492 "	13.5 mm	0.531 in	12.5 mm	52 A	Carbonyl Powder	Surface Mount	20 100 kHz	Shielded	31 A
Bourns Inc. SRP1245A-5R6M	5.6 µH	13 MHz	16.5 mOhm	100 kHz	0.197 in	5 mm	20 %	AEC-Q200	Drum Core Wirewound	Nonstandard	0.492 "	13.5 mm	0.531 in	12.5 mm	22 A	Carbonyl Powder	Surface Mount	20 100 kHz	Shielded	11.5 A
Bourns Inc. SRP1245A-1R2M	1.2 µH	35 MHz	3 mOhm	100 kHz	0.197 in	5 mm	20 %	AEC-Q200	Drum Core Wirewound	Nonstandard	0.492 "	13.5 mm	0.531 in	12.5 mm	49 A	Carbonyl Powder	Surface Mount	20 100 kHz	Shielded	28 A
Bourns Inc. SRP1245A-R33M	330 nH	90 MHz		100 kHz	0.197 in	5 mm	20 %	AEC-Q200	Drum Core Wirewound	Nonstandard	0.492 "	13.5 mm	0.531 in	12.5 mm	80 A	Carbonyl Powder	Surface Mount	15 100 kHz	Shielded	42 A	0.9 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.66
		10	$ 1.41
		25	$ 1.30
		50	$ 1.16
		100	$ 0.97
		250	$ 0.94
	Digi-Reel®	1	$ 1.66
		10	$ 1.41
		25	$ 1.30
		50	$ 1.16
		100	$ 0.97
		250	$ 0.94
	Tape & Reel (TR)	500	$ 0.68
Newark	Each (Supplied on Cut Tape)	250	$ 1.18

Description

General part information

SRP1245A Series

The SRP1245A series shielded Power Inductor with carbonyl powder core and tin termination. It has enamelled copper wire winding and suitable for DC/DC converters.
