Specification	SIT9107AN-23FN25E400.00000X

Base Resonator	MEMS
Current - Supply (Max)	76 mA
Frequency	400 MHz
Frequency Stability	10 ppm
Function	Enable, Disable
Height - Seated (Max)	0.031 in
Mounting Type	Surface Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	0 °C
Output	LVDS

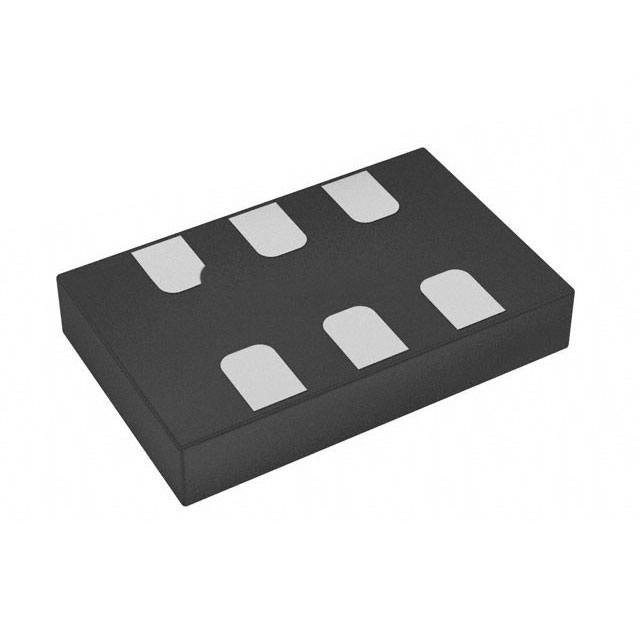

Package / Case	No Lead, 6-SMD
Package Length	5 mm
Package Name	6-SMD
Package Width	3.2 mm
Size / Dimension Length	0.197 in
Size / Dimension Width	0.126 in
Type	XO (Standard)
Voltage - Supply	2.5 V

SIT9107 Series

Part	Package / Case	Base Resonator	Current - Supply (Max)	Height - Seated (Max)	Frequency	Package Length	Package Name	Package Width	Operating Temperature (Min)	Operating Temperature (Max)	Function	Output	Frequency Stability	Mounting Type	Type	Size / Dimension Width	Size / Dimension Length	Voltage - Supply
SiTime SIT9107AI-24HH25E250.00000X	6-SMD No Lead Exposed Pad	MEMS	76 mA	0.039 in	250 MHz	7 mm	6-SMD	5 mm	-40 °C	85 °C	Disable Enable	LVDS	15 ppm	Surface Mount	XO (Standard)	0.197 in	0.276 in	2.5 V
SiTime SIT9107AI-24HH25E300.00000X	6-SMD No Lead Exposed Pad	MEMS	76 mA	0.039 in	300 MHz	7 mm	6-SMD	5 mm	-40 °C	85 °C	Disable Enable	LVDS	15 ppm	Surface Mount	XO (Standard)	0.197 in	0.276 in	2.5 V
SiTime SIT9107AI-331H18E245.76000X	6-SMD No Lead	MEMS	41 mA	0.031 in	245.76 MHz	5 mm	6-SMD	3.2 mm	-40 °C	85 °C	Disable Enable	CML	20 ppm	Surface Mount	XO (Standard)	0.126 in	0.197 in	1.8 V
SiTime SIT9107AN-23FN25E400.00000X	6-SMD No Lead	MEMS	76 mA	0.031 in	400 MHz	5 mm	6-SMD	3.2 mm	0 °C	70 °C	Disable Enable	LVDS	10 ppm	Surface Mount	XO (Standard)	0.126 in	0.197 in	2.5 V
SiTime SIT9107AI-243N25E300.00000X	6-SMD No Lead Exposed Pad	MEMS	76 mA	0.039 in	300 MHz	7 mm	6-SMD	5 mm	-40 °C	85 °C	Disable Enable	LVDS	50 ppm	Surface Mount	XO (Standard)	0.197 in	0.276 in	2.5 V
SiTime SIT9107AI-243N33E300.0000X	6-SMD No Lead Exposed Pad	MEMS	79 mA	0.039 in	300 MHz	7 mm	6-SMD	5 mm	-40 °C	85 °C	Disable Enable	LVDS	50 ppm	Surface Mount	XO (Standard)	0.197 in	0.276 in	3.3 V
SiTime SIT9107AI-283N33E300.0000X	6-SMD No Lead	MEMS	79 mA	0.039 in	300 MHz	7 mm	6-SMD	5 mm	-40 °C	85 °C	Disable Enable	LVDS	50 ppm	Surface Mount	XO (Standard)	0.197 in	0.276 in	3.3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Manufacturing Notes for SiTime Products

SIT9107AN-23FN25E400.00000X | Datasheet
