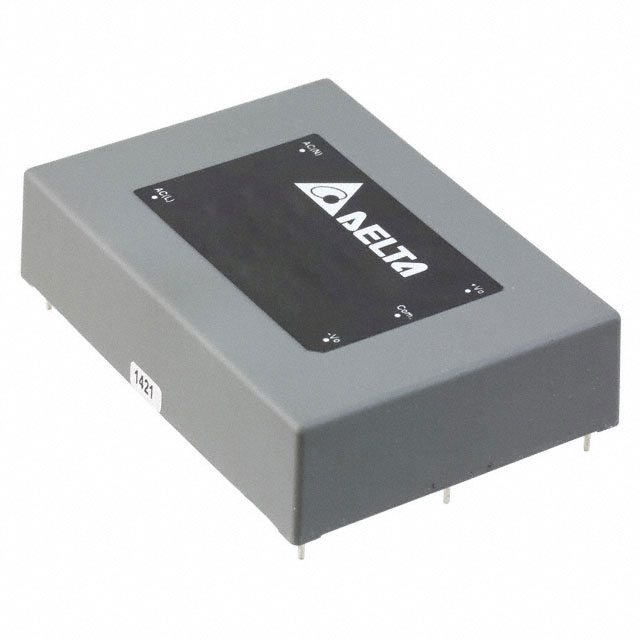

AA30D0512A

Obsolete

Delta Electronics

AC/DC CONVERTER 5V 12V 30W

Search across all available documentation for this part.

Obsolete

Delta Electronics

AC/DC CONVERTER 5V 12V 30W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER +/-12V 30W

Part	Mounting Type	Approval Agency	Type	Operating Temperature [Max]	Operating Temperature [Min]	Line Regulation	Applications	Power (Watts)	Package / Case	Voltage - Output 1	Current - Output (Max) [Max]	Number of Outputs	Standard Number	Efficiency	Weight	Weight	Load Regulation	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Load Regulation	Current - Output (Max)	Current - Output (Max)
Delta Electronics AA30D1212A	Through Hole	CE, cUL, UL	Enclosed	70 °C	-25 °C	Ý0.2%	ITE (Commercial)	30 W	7-DIP Module, 5 Leads	12 V	1.3 A	2	60950-1	80 %	176.9 g	0.39 lb	Ý2.5%	Universal Input	63.5 mm	3.5 in	2.5 in	89.9 mm	0.85 "	21.7 mm
Delta Electronics AA30D0512A	Through Hole	CE, cUL, UL	Enclosed	70 °C	-25 °C	±0.2%	ITE (Commercial)	30 W	7-DIP Module	5 V		2	60950-1	76 %	176.9 g	0.39 lb		Universal Input	63.5 mm	3.5 in	2.5 in	89.9 mm	0.85 "	21.7 mm	2.5 %	3 A	1.25 A
Delta Electronics AA30D1515A	Through Hole	CE, cUL, UL	Enclosed	70 °C	-25 °C	±0.2%	ITE (Commercial)	30 W	7-DIP Module, 5 Leads	15 V		2	60950-1	80 %	176.9 g	0.39 lb		Universal Input	63.5 mm	3.5 in	2.5 in	89.9 mm	0.85 "	21.7 mm	2.5 %	1 A	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed AC DC Converters 2 Output 5V 3A, 1.25A 85 ~ 264 VAC Input
