74LVCH162373APVG

Obsolete

Renesas Electronics Corporation

3.3V CMOS 16-BIT TRANSPARENT D-TYPE LATCH WITH 3-STATE OUTPUTS, 5.0V TOLERANT I/O, AND BUS-HOLD

Find alt

Alpha

74LVCH162373APVG

Obsolete

Renesas Electronics Corporation

3.3V CMOS 16-BIT TRANSPARENT D-TYPE LATCH WITH 3-STATE OUTPUTS, 5.0V TOLERANT I/O, AND BUS-HOLD

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

74LVCH162373A Series

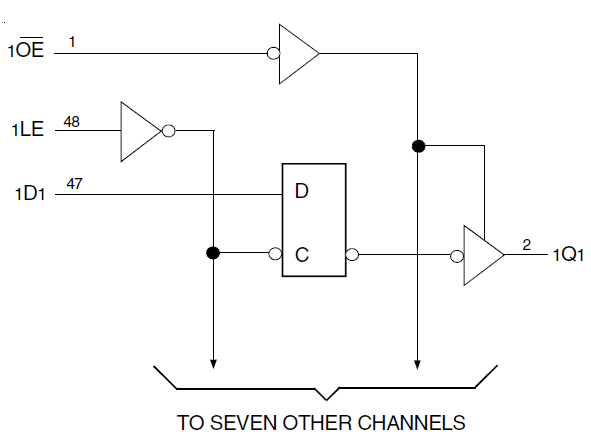

The 74LVCH162373A 16-bit high-speed, low power transparent D-type latch is ideal for temporary storage of data. All pins of the 74LVCH162373A can be driven from either 3.3V or 5V devices which allows the use of this device as a translator in a mixed 3.3V/5V supply system. The 74LVCH162373A has "bus-hold" which prevents floating inputs and eliminates the need for pull-up/down resistors. The 74LVCH162373A operates at -40C to +85C

Technical Specifications

Parameters and characteristics for this part

Specification	74LVCH162373APVG

Circuit	8:8
Current - Output High	12 mA
Current - Output Low	12 mA
Delay Time - Propagation	2.1 ns
Independent Circuits	2
Logic Type	D-Type Transparent Latch
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output Type	Tri-State
Package Length	0.295 in
Package Name	48-BSSOP, 48-SSOP
Package Width	7.5 mm
Voltage - Supply (Maximum)	3.6 V
Voltage - Supply (Minimum)	2.7 V

74LVCH162373A Series

3.3V CMOS 16-Bit Transparent D-Type Latch with 3-State Outputs, 5.0V Tolerant I/O, and Bus-Hold

Part	Mounting Type	Output Type	Independent Circuits	Package Length	Package Name	Package Width	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Current - Output High	Current - Output Low	Delay Time - Propagation	Operating Temperature (Min)	Operating Temperature (Max)	Circuit	Logic Type
Renesas Electronics Corporation 74LVCH162373APVG	Surface Mount	Tri-State	2	0.295 in	48-BSSOP 48-SSOP	7.5 mm	3.6 V	2.7 V	12 mA	12 mA	2.1 ns	-40 °C	85 °C	8:8	D-Type Transparent Latch
Renesas Electronics Corporation 74LVCH162373APAG	Surface Mount	Tri-State	2	0.24 in	48-TFSOP 48-TSSOP	6.1 mm	3.6 V	2.7 V	12 mA	12 mA	2.1 ns	-40 °C	85 °C	8:8	D-Type Transparent Latch
Renesas Electronics Corporation 74LVCH162373APVG8	Surface Mount	Tri-State	2	0.295 in	48-BSSOP 48-SSOP	7.5 mm	3.6 V	2.7 V	12 mA	12 mA	2.1 ns	-40 °C	85 °C	8:8	D-Type Transparent Latch
Renesas Electronics Corporation 74LVCH162373APAG8	Surface Mount	Tri-State	2	0.24 in	48-TFSOP 48-TSSOP	6.1 mm	3.6 V	2.7 V	12 mA	12 mA	2.1 ns	-40 °C	85 °C	8:8	D-Type Transparent Latch

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

74LVCH162373A Datasheet

74LVCH162373APVG | Datasheet
