895-124-525-512
ActiveEDAC Inc.

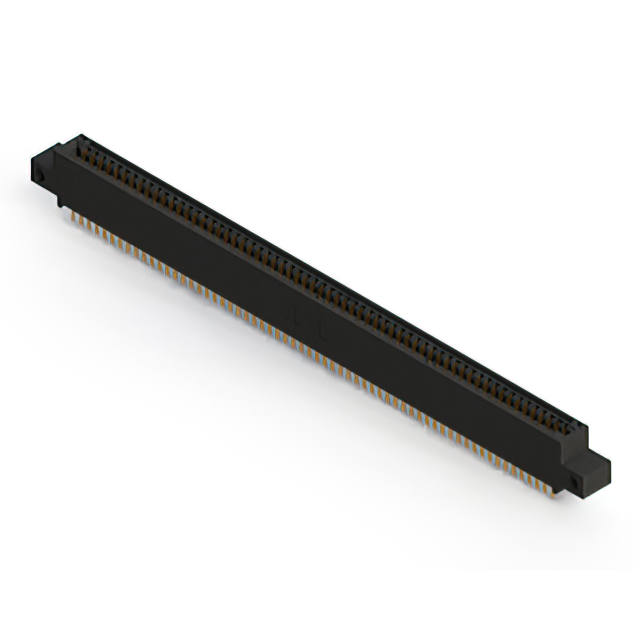

CARD EDGE CONNECTOR, 124 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, BLACK INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-124-525-512
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 124 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, BLACK INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-124-525-512 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 124 |
| Number of Positions/Bay/Row [custom] | 62 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
895-124 Series
...
| Part | Read Out | Material - Insulation | Number of Positions/Bay/Row [custom] | Flange Feature | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Gender | Number of Rows | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Card Type | Contact Finish | Termination | Color | Number of Positions | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | Polyphenylene Sulfide (PPS) | 62 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | 2 | Cantilever | 10 Áin | 0.25 Ám | 2 | Non Specified - Dual Edge | Gold | Solder | Black | 124 | Through Hole | 125 °C | -40 °C | |||||
EDAC Inc. | Dual | Polyphenylene Sulfide (PPS) | 62 | Side Mount Opening Unthreaded | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | 2 | Cantilever | 10 Áin | 0.25 Ám | 2 | Non Specified - Dual Edge | Gold | Solder | Black | 124 | Through Hole | 125 °C | -40 °C | 3.25 mm | 0.128 in | |||
EDAC Inc. | Dual | Polyphenylene Sulfide (PPS) | 62 | Flush Mount Top Opening Unthreaded | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | 2 | Cantilever | 10 Áin | 0.25 Ám | 2 | Non Specified - Dual Edge | Gold | Solder | Black | 124 | Board Edge Straddle Mount | 125 °C | -40 °C | 3.96 mm | 0.156 in | Card Extender | ||
EDAC Inc. | Dual | Polyphenylene Sulfide (PPS) | 62 | Flush Mount Side Opening Unthreaded | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | 2 | Cantilever | 10 Áin | 0.25 Ám | 2 | Non Specified - Dual Edge | Gold | Solder | Black | 124 | Board Edge Straddle Mount | 125 °C | -40 °C | 3.25 mm | 0.128 " | Card Extender | ||
EDAC Inc. | Dual | Polyphenylene Sulfide (PPS) | 62 | Floating Bobbin Top Mount Opening | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | 2 | Cantilever | 10 Áin | 0.25 Ám | 2 | Non Specified - Dual Edge | Gold | Solder | Black | 124 | Through Hole | 125 °C | -40 °C | 2.95 mm | 0.116 in | |||
EDAC Inc. | Dual | Polyphenylene Sulfide (PPS) | 62 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | 2 | Cantilever | 10 Áin | 0.25 Ám | 2 | Non Specified - Dual Edge | Gold | Solder | Black | 124 | Through Hole | 125 °C | -40 °C | ||||||
EDAC Inc. | Dual | Polyphenylene Sulfide (PPS) | 62 | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | 2 | Cantilever | 10 Áin | 0.25 Ám | 2 | Non Specified - Dual Edge | Gold | Wire Wrap | Black | 124 | Through Hole | 125 °C | -40 °C | |||||
EDAC Inc. | Dual | Polyphenylene Sulfide (PPS) | 62 | Floating Bobbin Top Mount Opening | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | 2 | Cantilever | 10 Áin | 0.25 Ám | 2 | Non Specified - Dual Edge | Gold | Solder | Black | 124 | Through Hole Right Angle | 125 °C | -40 °C | 2.95 mm | 0.116 in | |||
EDAC Inc. | Dual | Polyphenylene Sulfide (PPS) | 62 | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | 2 | Cantilever | 10 Áin | 0.25 Ám | 2 | Non Specified - Dual Edge | Gold | Solder | Black | 124 | Board Edge Straddle Mount | 125 °C | -40 °C | Card Extender | ||||
EDAC Inc. | Dual | Polyphenylene Sulfide (PPS) | 62 | Side Mount Opening Unthreaded | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | 2 | Cantilever | 10 Áin | 0.25 Ám | 2 | Non Specified - Dual Edge | Gold | Wire Wrap | Black | 124 | Through Hole | 125 °C | -40 °C | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
895-124 Series
124 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
