2302-5111-TG

Active

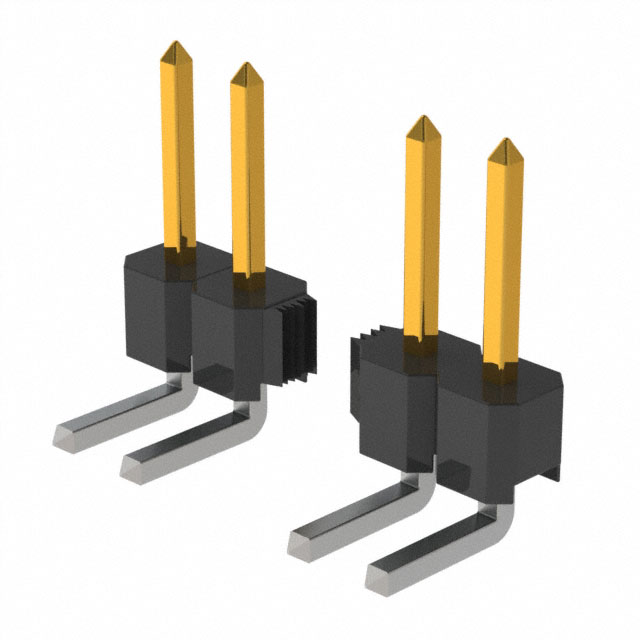

CONN HEADER R/A 2POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2302-5111-TG

Active

CONN HEADER R/A 2POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

2302 Series

Connector Header Through Hole, Right Angle 2 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2302-5111-TG	2302 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold, Tin-Lead
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	10 çin	10 çin
Contact Finish Thickness - Mating	0.25 çm	0.25 çm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	5.84 mm	5.84 mm
Contact Length - Mating	-	8.08 mm
Contact Length - Mating [x]	0.23 in	0.23 - 0.318 in
Contact Length - Post [x]	0.12 in	0.12 in
Contact Length - Post [x]	3.05 mm	3.05 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.1 in	0.1 in
Insulation Height	2.54 mm	2.54 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Through Hole
Number of Positions	2	2
Number of Positions Loaded	All	All
Number of Rows	1	1 - 2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	-	0.45 - 0.538 "
Overall Contact Length	-	11.43 - 13.67 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating	-	2.54 mm
Row Spacing - Mating	-	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

2302 Series

CONN HEADER R/A 2POS 2.54MM

Part	Style	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Material	Material Flammability Rating	Contact Finish - Post	Insulation Color	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Shape	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Length - Mating [x]	Contact Length - Mating	Connector Type	Number of Positions Loaded	Fastening Type	Shrouding	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]
3M 2302-5111-TG	Board to Board, Cable	Through Hole, Right Angle	10 çin	0.25 çm	3 A	0.1 in	2.54 mm	Copper Alloy	UL94 V-0	Tin-Lead	Black	Solder	0.12 in	3.05 mm	1	105 ░C	-55 °C	Male Pin	Square	2	0.1 in	2.54 mm	2.54 µm	100 µin	Gold	0.23 in	5.84 mm	Header	All	Push-Pull	Unshrouded
3M 2302-6211-TG	Board to Board, Cable	Through Hole	10 çin, 10 Ąin	0.25 çm, 0.25 Ąm	3 A	0.1 in	2.54 mm	Copper Alloy	UL94 V-0	Tin-Lead	Black	Solder	0.12 in	3.05 mm	1	105 ░C	-55 °C	Male Pin	Square	2	0.1 in	2.54 mm	2.54 Ąm, 2.54 µm	100 Ąin, 100 µin	Gold	0.318 "		Header	All	Push-Pull	Unshrouded	0.538 "	13.67 mm	8.08 mm
3M 2302-6221-TG	Board to Board, Cable	Through Hole	10 çin	0.25 çm	3 A	0.1 in	2.54 mm	Copper Alloy	UL94 V-0	Tin-Lead	Black	Solder	0.12 in	3.05 mm	2	105 ░C	-55 °C	Male Pin	Square	2			2.54 µm	100 µin	Gold	0.318 "		Header	All	Push-Pull	Unshrouded	0.538 "	13.67 mm	8.08 mm	2.54 mm	0.1 in
3M 2302-6111-TG	Board to Board, Cable	Through Hole	10 çin	0.25 çm	3 A	0.1 in	2.54 mm	Copper Alloy	UL94 V-0	Tin-Lead	Black	Solder	0.12 in	3.05 mm	1	105 ░C	-55 °C	Male Pin	Square	2	0.1 in	2.54 mm	2.54 µm	100 µin	Gold	0.23 in	5.84 mm	Header	All	Push-Pull	Unshrouded	0.45 "	11.43 mm
3M 2302-5211-TG	Board to Board, Cable	Through Hole, Right Angle	10 çin	0.25 çm	3 A	0.1 in	2.54 mm	Copper Alloy	UL94 V-0	Tin-Lead	Black	Solder	0.12 in	3.05 mm	1	105 ░C	-55 °C	Male Pin	Square	2	0.1 in	2.54 mm	2.54 µm	100 µin	Gold	0.318 "		Header	All	Push-Pull	Unshrouded			8.08 mm
3M 2302-6111-TP	Board to Board, Cable	Through Hole			3 A	0.1 in	2.54 mm	Copper Alloy	UL94 V-0	Tin-Lead	Black	Solder	0.12 in	3.05 mm	1	105 ░C	-55 °C	Male Pin	Square	2	0.1 in	2.54 mm	2.54 µm	100 µin	Tin-Lead	0.23 in	5.84 mm	Header	All	Push-Pull	Unshrouded	0.45 "	11.43 mm
