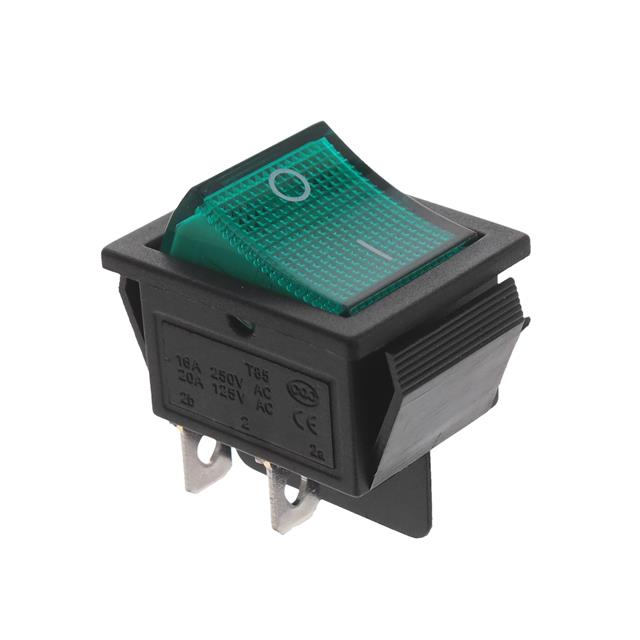

SW-R1-3A-E-LG13-0

Active

Adam Tech

SWITCH ROCKER DPST 20A 125V

Search across all available documentation for this part.

Active

Adam Tech

SWITCH ROCKER DPST 20A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPST 20A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SW-R1-3A-E-LG13-0	SW-R1 Series

Actuator Marking	O -	Vertical, ON OFF, O -
Actuator Type	Concave (Curved) - Illuminated	Concave (Curved), Concave (Curved) - Illuminated
Circuit	DPST	DPST, SPST
Color - Actuator/Cap	Green	Amber, White, Black, Blue, Green
Current Rating (Amps)	20 A	20 A
Electrical Life	10000 Cycles	10000 Cycles
Illumination Type, Color	LED, Green	LED, Green
Illumination Voltage (Nominal)	12 VDC	12 VDC
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [x]	30 mm	28 - 30 mm
Panel Cutout Dimensions [y]	22 mm	10 - 22 mm
Switch Function	On-Off	On-Off, Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V	125 V

SWITCH ROCKER DPST 20A 125V

Part	Actuator Marking	Mounting Type	Switch Function	Color - Actuator/Cap	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Circuit	Termination Style	Voltage Rating - AC	Current Rating (Amps)	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Illumination Type, Color	Illumination Voltage (Nominal)
Adam Tech SW-R1-3A-E-Y2-0	ON OFF, Vertical	Panel Mount, Snap-In	On-Off	Amber	Concave (Curved)	-25 °C	85 °C	10000 Cycles	DPST	Quick Connect - 0.250" (6.3mm)	125 V	20 A
Adam Tech SW-R1-1A-E-W1-1	O -	Panel Mount, Snap-In	On-Off	White	Concave (Curved)	-25 °C	85 °C	10000 Cycles	SPST	Quick Connect - 0.250" (6.3mm)	125 V	20 A	28 mm	10 mm
Adam Tech SW-R1-3C-E-1-2	O -	Panel Mount, Snap-In	Off-Mom	Black	Concave (Curved)	-25 °C	85 °C	10000 Cycles	DPST	Quick Connect - 0.250" (6.3mm)	125 V	20 A	30 mm	22 mm
Adam Tech SW-R1-3A-E-B1-0	O -	Panel Mount, Snap-In	On-Off	Blue	Concave (Curved)	-25 °C	85 °C	10000 Cycles	DPST	Quick Connect - 0.250" (6.3mm)	125 V	20 A
Adam Tech SW-R1-3A-E-W2-0	ON OFF, Vertical	Panel Mount, Snap-In	On-Off	White	Concave (Curved)	-25 °C	85 °C	10000 Cycles	DPST	Quick Connect - 0.250" (6.3mm)	125 V	20 A
Adam Tech SW-R1-3A-E-LG13-0	O -	Panel Mount, Snap-In	On-Off	Green	Concave (Curved) - Illuminated	-25 °C	85 °C	10000 Cycles	DPST	Quick Connect - 0.250" (6.3mm)	125 V	20 A	30 mm	22 mm	Green, LED	12 VDC
