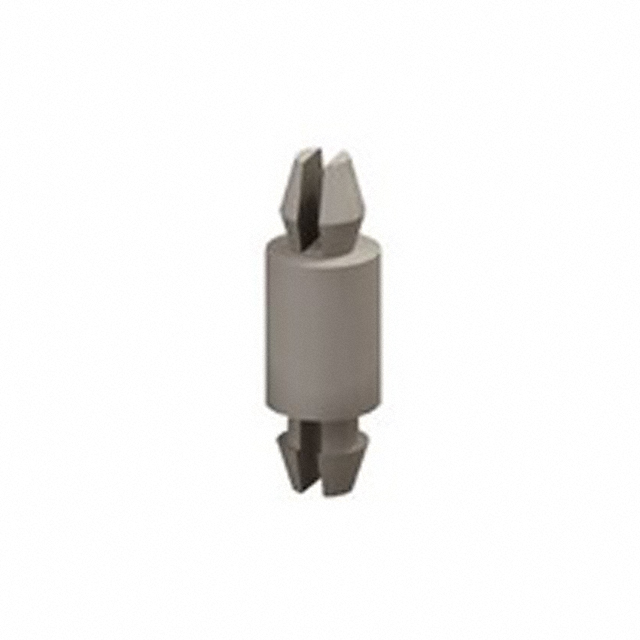

8883

Active

Keystone Electronics

BRD SPT SNAP FIT/LOCK NYLON 1/2"

Search across all available documentation for this part.

Active

Keystone Electronics

BRD SPT SNAP FIT/LOCK NYLON 1/2"

Technical Specifications

Parameters and characteristics for this part

Specification	8883

Between Board Height	0.5 in
Between Board Height	12.7 mm
Between Board Height	0.5 in
Features	Tension Fit
Holding Type	Snap Fit
Length - Overall [x]	20.1 mm
Length - Overall [x]	0.791 in
Material	Nylon
Mounting Hole Diameter	0.125 in
Mounting Hole Diameter	0.125 in
Mounting Hole Diameter	3.18 mm
Mounting Panel Thickness	0.062 in
Mounting Panel Thickness	0.0625 in
Mounting Panel Thickness	1.57 mm
Mounting Type	Snap Fit
Support Hole Diameter [diameter]	0.125 in
Support Hole Diameter [diameter]	0.125 in
Support Hole Diameter [diameter]	3.18 mm
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

Standoffs & Spacers SUPPORT

Part	Mounting Type	Length - Overall [x]	Length - Overall [x]	Length - Overall [x]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Between Board Height	Between Board Height	Between Board Height	Holding Type	Features	Material	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Hole Diameter	Mounting Hole Diameter	Mounting Hole Diameter
Keystone Electronics 8829	Snap Fit	0.25 in	6.35 mm	0.25 in	0.1875 "	4.75 mm	0.187 "	0.187 in	4.75 mm	3 in	0.125 in	3.18 mm	0.125 in	Snap Fit	Stackable	Nylon	0.0625 "	0.062 "	1.57 mm
Keystone Electronics 8890	Snap Lock		13.97 mm	0.55 "	2.54 mm		0.1 in	0.1 in	2.54 mm		0.25 in	6.35 mm	0.25 in	Snap Lock		Nylon	0.0625 "	0.062 "	1.57 mm	0.062 in	0.0625 in	1.57 mm
Keystone Electronics 8883	Snap Fit		20.1 mm	0.791 in	3.18 mm	0.125 in	0.125 in				0.5 in	12.7 mm	0.5 in	Snap Fit	Tension Fit	Nylon	0.0625 "	0.062 "	1.57 mm	0.062 in	0.0625 in	1.57 mm	0.125 in	0.125 in	3.18 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Standoffs & Spacers SUPPORT
