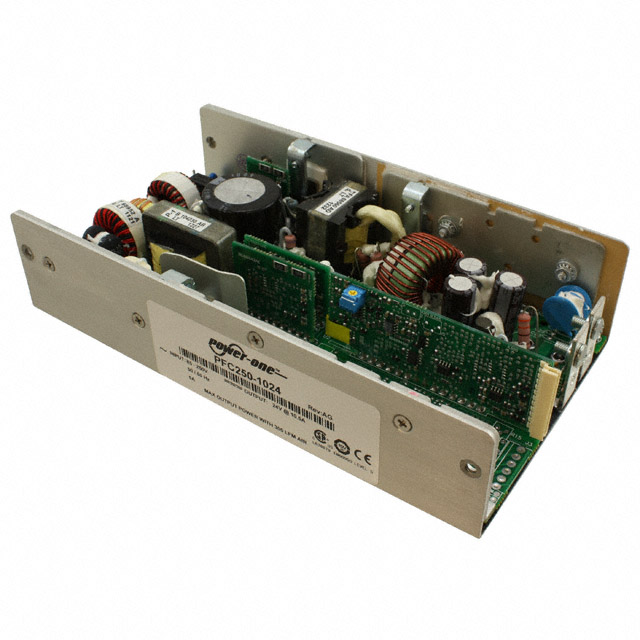

PFC250-1024

Active

Bel Power Solutions

AC/DC CONVERTER 24V 250W

Deep-Dive with AI

Search across all available documentation for this part.

PFC250-1024

Active

Bel Power Solutions

AC/DC CONVERTER 24V 250W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PFC250-1024	PFC250 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	10.5 A	10.5 - 40 A
Current - Output 2	-	20 A
Current - Output 3	-	6 A
Current - Output 4	-	3 A
Efficiency	75 %	75 %
Features	Universal Input, Remote Sense, Adjustable Output, PFC	Universal Input, Remote Sense, Adjustable Output, PFC, Load Sharing, Remote On/Off, Standby Output
Minimum Load Required	False	False, True
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1 - 4
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	250 W	250 W
Size / Dimension [x]	8.5 in	8.5 - 10 in
Size / Dimension [x]	215.9 mm	215.9 - 254 mm
Size / Dimension [y]	4.75 in	4.75 in
Size / Dimension [y]	120.7 mm	120.7 mm
Size / Dimension [z]	50.8 mm	50.8 - 63.5 mm
Size / Dimension [z]	2 "	2 - 2.5 "
Type	Enclosed	Enclosed
Voltage - Isolation	2.6 kV	2.6 kV
Voltage - Output 1	24 V	5 - 24 V
Voltage - Output 2	-	3.3 V
Voltage - Output 3	-	12 V
Voltage - Output 4	-	12 V

PFC250 Series

SWITCHING POWER SUPPLIES BEL POWER

Part	Applications	Approval Agency	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Power (Watts)	Type	Current - Output 1	Features	Mounting Type	Operating Temperature [Max]	Efficiency	Number of Outputs	Voltage - Output 3	Voltage - Output 2	Current - Output 3	Voltage - Output 4	Current - Output 2	Current - Output 4
Bel Power Solutions PFC250-1024G	ITE (Commercial)	CE	24 V	50.8 mm	2 "	8.5 in	4.75 in	215.9 mm	120.7 mm	2.6 kV	250 W	Enclosed	10.5 A	Adjustable Output, PFC, Remote Sense, Universal Input	Chassis Mount	70 °C	75 %	1
Bel Power Solutions PFC250-1024	ITE (Commercial)	CE	24 V	50.8 mm	2 "	8.5 in	4.75 in	215.9 mm	120.7 mm	2.6 kV	250 W	Enclosed	10.5 A	Adjustable Output, PFC, Remote Sense, Universal Input	Chassis Mount	70 °C	75 %	1
Bel Power Solutions PFC250-4530G	ITE (Commercial)	CE	5 V	50.8 mm	2 "	8.5 in	4.75 in	215.9 mm	120.7 mm	2.6 kV	250 W	Enclosed	40 A	Adjustable Output, PFC, Remote Sense, Universal Input	Chassis Mount	70 °C	75 %	4	12 V	3.3 V	6 A	12 V	20 A	3 A
Bel Power Solutions PFC250-1024F	ITE (Commercial)	CE	24 V	63.5 mm	2.5 in	10 in	4.75 in	254 mm	120.7 mm	2.6 kV	250 W	Enclosed	10.5 A	Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	Chassis Mount	70 °C	75 %	1
Bel Power Solutions PFC250-1015	ITE (Commercial)	CE	15 V	50.8 mm	2 "	8.5 in	4.75 in	215.9 mm	120.7 mm	2.6 kV	250 W	Enclosed	18.3 A	Adjustable Output, PFC, Remote Sense, Universal Input	Chassis Mount	70 °C	75 %	1
Bel Power Solutions PFC250-1015G	ITE (Commercial)	CE	15 V	50.8 mm	2 "	8.5 in	4.75 in	215.9 mm	120.7 mm	2.6 kV	250 W	Enclosed	18.3 A	Adjustable Output, PFC, Remote Sense, Universal Input	Chassis Mount	70 °C	75 %	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PFC250 Series

Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
