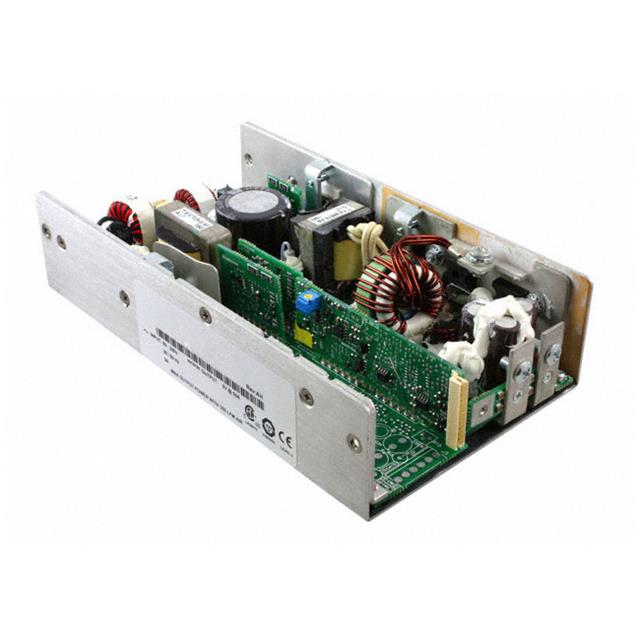

PFC250-1015G

Active

Bel Power Solutions

AC/DC CONVERTER 15V 250W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PFC250-1015G

Active

Bel Power Solutions

AC/DC CONVERTER 15V 250W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 445.08
		5	$ 436.25
		10	$ 527.22

Description

General part information

PFC250 Series

Enclosed AC DC Converters 1 Output 15V 85 ~ 264 VAC Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PFC250-1015G	PFC250 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	18.3 A	10.5 - 40 A
Current - Output 2	-	20 A
Current - Output 3	-	6 A
Current - Output 4	-	3 A
Efficiency	75 %	75 %
Features	Universal Input, Remote Sense, Adjustable Output, PFC	Universal Input, Remote Sense, Adjustable Output, PFC, Load Sharing, Remote On/Off, Standby Output
Minimum Load Required	False	False, True
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1 - 4
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	250 W	250 W
Size / Dimension [x]	8.5 in	8.5 - 10 in
Size / Dimension [x]	215.9 mm	215.9 - 254 mm
Size / Dimension [y]	4.75 in	4.75 in
Size / Dimension [y]	120.7 mm	120.7 mm
Size / Dimension [z]	50.8 mm	50.8 - 63.5 mm
Size / Dimension [z]	2 "	2 - 2.5 "
Type	Enclosed	Enclosed
Voltage - Isolation	2.6 kV	2.6 kV
Voltage - Output 1	15 V	5 - 24 V
Voltage - Output 2	-	3.3 V
Voltage - Output 3	-	12 V
Voltage - Output 4	-	12 V

PFC250 Series

SWITCHING POWER SUPPLIES BEL POWER

Part	Applications	Approval Agency	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Power (Watts)	Type	Current - Output 1	Features	Mounting Type	Operating Temperature [Max]	Efficiency	Number of Outputs	Voltage - Output 3	Voltage - Output 2	Current - Output 3	Voltage - Output 4	Current - Output 2	Current - Output 4
Bel Power Solutions PFC250-1024G	ITE (Commercial)	CE	24 V	50.8 mm	2 "	8.5 in	4.75 in	215.9 mm	120.7 mm	2.6 kV	250 W	Enclosed	10.5 A	Adjustable Output, PFC, Remote Sense, Universal Input	Chassis Mount	70 °C	75 %	1
Bel Power Solutions PFC250-1024	ITE (Commercial)	CE	24 V	50.8 mm	2 "	8.5 in	4.75 in	215.9 mm	120.7 mm	2.6 kV	250 W	Enclosed	10.5 A	Adjustable Output, PFC, Remote Sense, Universal Input	Chassis Mount	70 °C	75 %	1
Bel Power Solutions PFC250-4530G	ITE (Commercial)	CE	5 V	50.8 mm	2 "	8.5 in	4.75 in	215.9 mm	120.7 mm	2.6 kV	250 W	Enclosed	40 A	Adjustable Output, PFC, Remote Sense, Universal Input	Chassis Mount	70 °C	75 %	4	12 V	3.3 V	6 A	12 V	20 A	3 A
Bel Power Solutions PFC250-1024F	ITE (Commercial)	CE	24 V	63.5 mm	2.5 in	10 in	4.75 in	254 mm	120.7 mm	2.6 kV	250 W	Enclosed	10.5 A	Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	Chassis Mount	70 °C	75 %	1
Bel Power Solutions PFC250-1015	ITE (Commercial)	CE	15 V	50.8 mm	2 "	8.5 in	4.75 in	215.9 mm	120.7 mm	2.6 kV	250 W	Enclosed	18.3 A	Adjustable Output, PFC, Remote Sense, Universal Input	Chassis Mount	70 °C	75 %	1
Bel Power Solutions PFC250-1015G	ITE (Commercial)	CE	15 V	50.8 mm	2 "	8.5 in	4.75 in	215.9 mm	120.7 mm	2.6 kV	250 W	Enclosed	18.3 A	Adjustable Output, PFC, Remote Sense, Universal Input	Chassis Mount	70 °C	75 %	1
