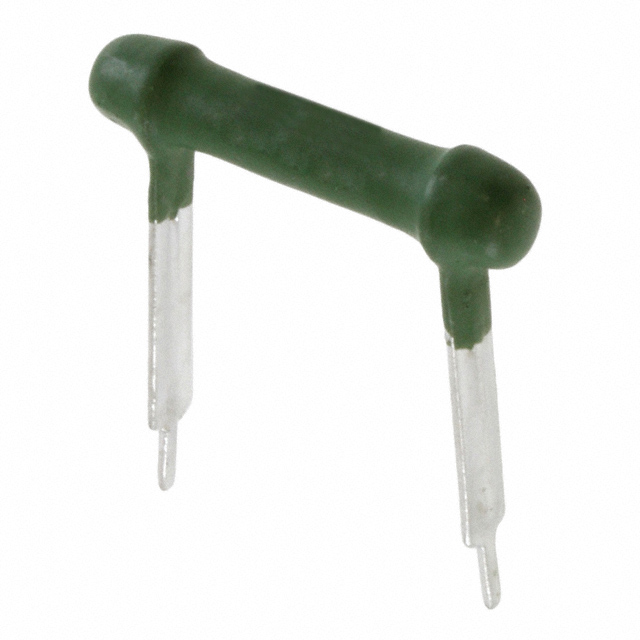

FCB433RJ

Obsolete

TE Connectivity Passive Product

RES 33 OHM 5% 4W RADIAL

Search across all available documentation for this part.

Obsolete

TE Connectivity Passive Product

RES 33 OHM 5% 4W RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	FCB433RJ

Composition	Wirewound
Features	Safety, Flame Retardant Coating
Number of Terminations	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Power (Watts)	4 W
Resistance	33 Ohms
Size / Dimension [diameter]	0.197 "
Size / Dimension [diameter]	5 mm
Size / Dimension [z]	0.953 "
Size / Dimension [z]	24.2 mm
Temperature Coefficient [Max]	40 ppm/°C
Temperature Coefficient [Min]	-80 ppm/°C
Tolerance	5 %

Part	Resistance	Features	Number of Terminations	Power (Watts)	Package / Case	Composition	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient [Min]	Temperature Coefficient [Max]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Supplier Device Package
TE Connectivity Passive Product FCB415RJ	15 Ohms	Flame Retardant Coating Safety	2	4 W	Radial	Wirewound	5 %	-55 °C	200 °C	-80 ppm/°C	40 ppm/°C	0.953 "	0.197 "	5 mm	24.2 mm
TE Connectivity Passive Product FCB4R68J	680 mOhms	Flame Retardant Coating Safety	2	4 W	Radial	Wirewound	5 %	-55 °C	200 °C	-80 ppm/°C	40 ppm/°C	0.953 "	0.197 "	5 mm	24.2 mm
TE Connectivity Passive Product FCB4R68K	680 mOhms	Flame Retardant Coating Safety	2	4 W	Radial	Wirewound	10 %	-55 °C	200 °C	-80 ppm/°C	40 ppm/°C	0.953 "	0.197 "	5 mm	24.2 mm	Radial Lead
TE Connectivity Passive Product FCB433RJ	33 Ohms	Flame Retardant Coating Safety	2	4 W	Radial	Wirewound	5 %	-55 °C	200 °C	-80 ppm/°C	40 ppm/°C	0.953 "	0.197 "	5 mm	24.2 mm
TE Connectivity Passive Product FCB4R47J	470 mOhms	Flame Retardant Coating Safety	2	4 W	Radial	Wirewound	5 %	-55 °C	200 °C	-80 ppm/°C	40 ppm/°C	0.953 "	0.197 "	5 mm	24.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

33 Ohms ±5% 4W Through Hole Resistor Radial Flame Retardant Coating, Safety Wirewound
