Q-080180008072i

Active

Amphenol Custom Cable

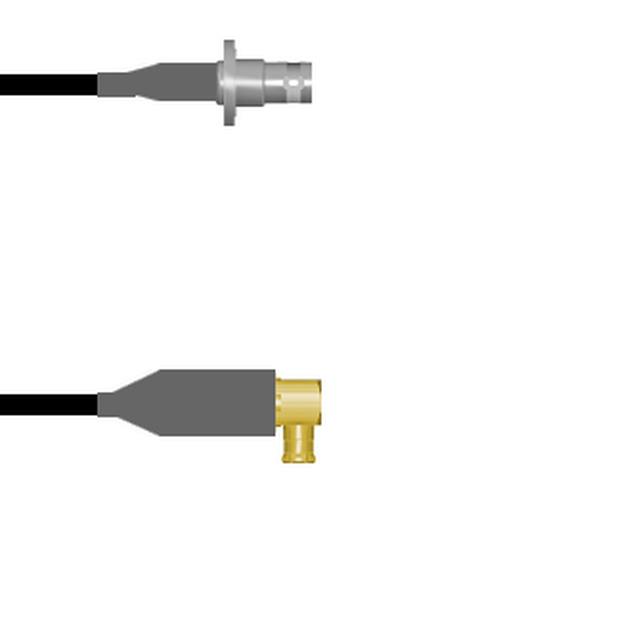

CBL ASSY BNC-MCX JACK-PLUG 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-080180008072i

Active

Amphenol Custom Cable

CBL ASSY BNC-MCX JACK-PLUG 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-080180008072i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	BNC to MCX

Q-080180 Series

Part	Overall Impedance	1st Connector	Length	Length	Length	1st Contact Gender	Color	2nd Contact Gender	2nd Connector Mounting Type	1st Connector Mounting Type	Frequency - Max [Max]	Features	Style	1st Connector Mounting Feature	2nd Connector	Cable Type	Length [x]	Length [x]
Amphenol Custom Cable Q-080180008003M	50 Ohms	BNC Jack	3 m	118.1 in	9.8 '	Female	Black	Male	Free Hanging (In-Line)	Panel Mount	4 GHz	Shielded	BNC to MCX	Bulkhead - Front Side Nut	MCX Plug Right Angle	RG-58
Amphenol Custom Cable Q-080180008.25M	50 Ohms	BNC Jack				Female	Black	Male	Free Hanging (In-Line)	Panel Mount	4 GHz	Shielded	BNC to MCX	Bulkhead - Front Side Nut	MCX Plug Right Angle	RG-58	9.843 "	250 mm
Amphenol Custom Cable Q-080180008036i	50 Ohms	BNC Jack	91.44 cm	36 in		Female	Black	Male	Free Hanging (In-Line)	Panel Mount	4 GHz	Shielded	BNC to MCX	Bulkhead - Front Side Nut	MCX Plug Right Angle	RG-58
Amphenol Custom Cable Q-0801800080.5M	50 Ohms	BNC Jack	50 cm	19.69 "		Female	Black	Male	Free Hanging (In-Line)	Panel Mount	4 GHz	Shielded	BNC to MCX	Bulkhead - Front Side Nut	MCX Plug Right Angle	RG-58
Amphenol Custom Cable Q-0801800081.5M	50 Ohms	BNC Jack	1.5 m	59.1 in	4.9 ft	Female	Black	Male	Free Hanging (In-Line)	Panel Mount	4 GHz	Shielded	BNC to MCX	Bulkhead - Front Side Nut	MCX Plug Right Angle	RG-58
Amphenol Custom Cable Q-080180008048i	50 Ohms	BNC Jack	1200 mm	48 in	4 ft	Female	Black	Male	Free Hanging (In-Line)	Panel Mount	4 GHz	Shielded	BNC to MCX	Bulkhead - Front Side Nut	MCX Plug Right Angle	RG-58
Amphenol Custom Cable Q-080180008012i	50 Ohms	BNC Jack	304.8 mm	12 "		Female	Black	Male	Free Hanging (In-Line)	Panel Mount	4 GHz	Shielded	BNC to MCX	Bulkhead - Front Side Nut	MCX Plug Right Angle	RG-58
Amphenol Custom Cable Q-080180008072i	50 Ohms	BNC Jack	1.8 m	72 in	6 ft	Female	Black	Male	Free Hanging (In-Line)	Panel Mount	4 GHz	Shielded	BNC to MCX	Bulkhead - Front Side Nut	MCX Plug Right Angle	RG-58
Amphenol Custom Cable Q-080180008001M	50 Ohms	BNC Jack	1 m	39.4 in	3.3 ft	Female	Black	Male	Free Hanging (In-Line)	Panel Mount	4 GHz	Shielded	BNC to MCX	Bulkhead - Front Side Nut	MCX Plug Right Angle	RG-58
Amphenol Custom Cable Q-080180008060i	50 Ohms	BNC Jack	1.5 m	5 '	5 ft	Female	Black	Male	Free Hanging (In-Line)	Panel Mount	4 GHz	Shielded	BNC to MCX	Bulkhead - Front Side Nut	MCX Plug Right Angle	RG-58

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 102.47
		25	$ 100.48
		50	$ 98.49
		100	$ 96.49
		250	$ 94.50

Description

General part information

Q-080180 Series

Cable Assembly Coaxial BNC to MCX RG-58 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
