TSE-250MA

Active

OptiFuse

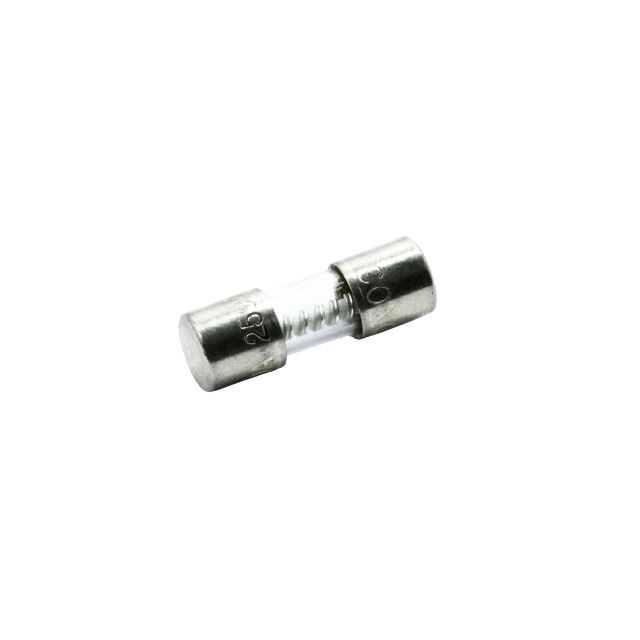

FUSE GLASS 250MA 250VAC 2AG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TSE-250MA

Active

OptiFuse

FUSE GLASS 250MA 250VAC 2AG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.82
		10	$ 0.78
		25	$ 0.77
		50	$ 0.64
		100	$ 0.53
		250	$ 0.48
		500	$ 0.40
		1000	$ 0.35

Description

General part information

TSE Series

250 mA 250 V AC DC Fuse Cartridge, Glass Requires Holder 2AG, 5mm x 15mm

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TSE-250MA	TSE Series

Approval Agency	UL 248, cULus	UL 248, cULus
Breaking Capacity @ Rated Voltage	100 A	100 A
Current Rating (Amps)	0.25 A	0.25 - 8 A
Melting I˛t	0.0735	0.0735 - 147.9
Mounting Type	Requires Holder	Requires Holder
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	2AG	2AG
Package / Case [x]	5 mm	5 mm
Package / Case [y]	15 mm	15 mm
Response Time	Slow Blow	Slow Blow
Size / Dimension [diameter]	4.5 mm	4.5 mm
Size / Dimension [diameter]	0.177 "	0.177 "
Size / Dimension [x]	0.591 in	0.591 in
Size / Dimension [x]	15 mm	15 mm
Voltage Rating - AC	250 V	250 V

TSE Series

FUSE GLASS 2A 250VAC 2AG

Part	Mounting Type	Voltage Rating - AC	Melting I˛t	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Package / Case [x]	Package / Case	Package / Case [y]	Current Rating (Amps)	Breaking Capacity @ Rated Voltage	Response Time	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]
OptiFuse TSE-2A	Requires Holder	250 V	13.45	-55 °C	125 °C	cULus, UL 248	5 mm	2AG	15 mm	2 A	100 A	Slow Blow	0.591 in	4.5 mm	0.177 "	15 mm
OptiFuse TSE-3A	Requires Holder	250 V	9.25	-55 °C	125 °C	cULus, UL 248	5 mm	2AG	15 mm	3 A	100 A	Slow Blow	0.591 in	4.5 mm	0.177 "	15 mm
OptiFuse TSE-2.5A	Requires Holder	250 V	6.14	-55 °C	125 °C	cULus, UL 248	5 mm	2AG	15 mm	2.5 A	100 A	Slow Blow	0.591 in	4.5 mm	0.177 "	15 mm
OptiFuse TSE-7A	Requires Holder	250 V	108.4	-55 °C	125 °C	cULus, UL 248	5 mm	2AG	15 mm	7 A	100 A	Slow Blow	0.591 in	4.5 mm	0.177 "	15 mm
OptiFuse TSE-1A	Requires Holder	250 V	2.245	-55 °C	125 °C	cULus, UL 248	5 mm	2AG	15 mm	1 A	100 A	Slow Blow	0.591 in	4.5 mm	0.177 "	15 mm
OptiFuse TSE-315MA	Requires Holder	250 V	0.12	-55 °C	125 °C	cULus, UL 248	5 mm	2AG	15 mm	0.315 A	100 A	Slow Blow	0.591 in	4.5 mm	0.177 "	15 mm
OptiFuse TSE-5A	Requires Holder	250 V	37.27	-55 °C	125 °C	cULus, UL 248	5 mm	2AG	15 mm	5 A	100 A	Slow Blow	0.591 in	4.5 mm	0.177 "	15 mm
OptiFuse TSE-250MA	Requires Holder	250 V	0.0735	-55 °C	125 °C	cULus, UL 248	5 mm	2AG	15 mm	0.25 A	100 A	Slow Blow	0.591 in	4.5 mm	0.177 "	15 mm
OptiFuse TSE-8A	Requires Holder	250 V	147.9	-55 °C	125 °C	cULus, UL 248	5 mm	2AG	15 mm	8 A	100 A	Slow Blow	0.591 in	4.5 mm	0.177 "	15 mm
OptiFuse TSE-3.5A	Requires Holder	250 V	12.53	-55 °C	125 °C	cULus, UL 248	5 mm	2AG	15 mm	3.5 A	100 A	Slow Blow	0.591 in	4.5 mm	0.177 "	15 mm
