9077 0101000

Active

Belden Inc.

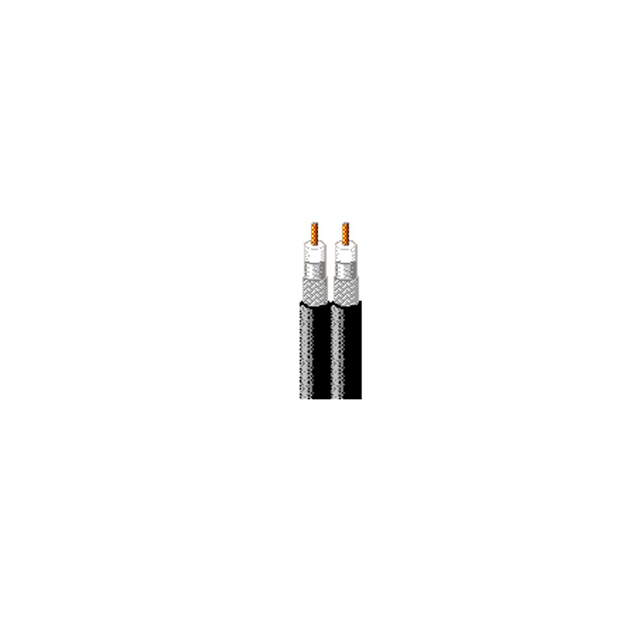

COAX DUAL RG6 18AWG

Search across all available documentation for this part.

Active

Belden Inc.

COAX DUAL RG6 18AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9077 0101000

Cable Group	Dual, RG-6
Cable Type	Coaxial
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid (2)
Dielectric Diameter [diameter]	0.18 in
Dielectric Diameter [diameter]	4.57 mm
Dielectric Material	Foam Polyethylene (FPE)
Impedance	75 Ohms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	60%, 100%
Shield Material	Aluminum
Shield Type	Foil, Braid
Usage	CATV
VoP, Velocity of Propagation	83
Wire Gauge [custom]	2
Wire Gauge [custom]	18 AWG

Part	Shield Coverage	Cable Type	Wire Gauge [custom]	Wire Gauge [custom]	Shield Type	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Conductor Material	Conductor Strand	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Dielectric Material	VoP, Velocity of Propagation	Jacket (Insulation) Material	Jacket Color	Impedance	Usage	Cable Group	Length	Length
Belden Inc. 9077 0101000	100% 60%	Coaxial	2	18 AWG	Braid Foil	0.18 in	4.57 mm	Copper Coated Steel	Solid (2)	-40 °C	80 C	Aluminum	Foam Polyethylene (FPE)	83	Poly-Vinyl Chloride (PVC)	Black	75 Ohms	CATV	Dual RG-6	304.8 m	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.48

General part information

Coaxial Cable 18 AWG (2) RG-6, Dual 1000.0' (304.80m) 75 Ohms
