PYB30-Q24-S15

Obsolete

CUI Inc.

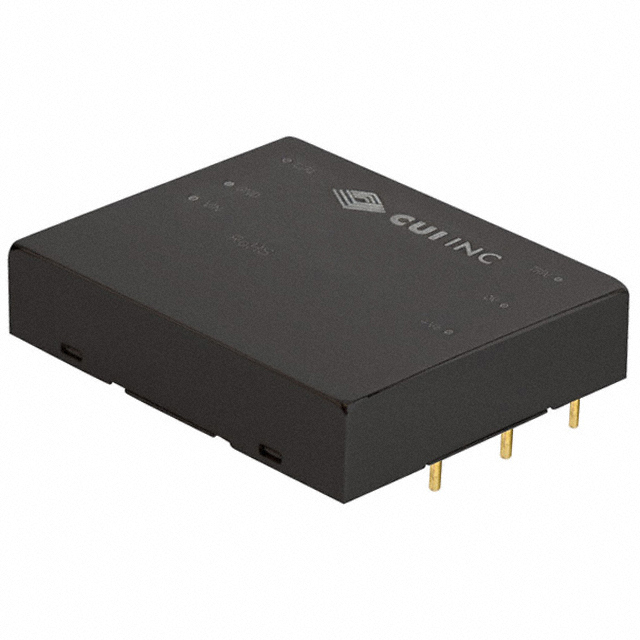

DC DC CONVERTER 15V 30W

Deep-Dive with AI

Search across all available documentation for this part.

PYB30-Q24-S15

Obsolete

CUI Inc.

DC DC CONVERTER 15V 30W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PYB30-Q24-S15

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	2 A
Efficiency	90 %
Features	OVP, UVLO, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-DIP Module, 6 Leads
Power (Watts)	30 W
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	40.64 mm, 40.6 mm
Size / Dimension [z]	11.8 mm, 0.47 "
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	15 V

PYB30 Series

Part	Power (Watts)	Voltage - Input (Max) [Max]	Mounting Type	Approval Agency	Type	Current - Output (Max) [Max]	Efficiency	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Number of Outputs	Applications	Features	Voltage - Isolation	Package / Case	Control Features	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Voltage - Output 3	Current - Output (Max) [Max]	Current - Output (Max)
CUI Inc. PYB30-Q48-S15-U	30 W	75 V	Chassis Mount	EN IEC	Enclosed	2 A	89 %	15 V	85 °C	-40 °C	0.75 in	2.66 in	55 mm	19.1 mm	67.5 mm	2.16 in	18 V	1
CUI Inc. PYB30-Q24-S15	30 W	36 V	Through Hole		Isolated Module	2 A	90 %	15 V	85 °C	-40 °C	0.47 " 11.8 mm	50.8 mm				40.6 mm 40.64 mm	9 V	1	ITE (Commercial)	OCP OVP Remote On/Off SCP UVLO	1.5 kV	7-DIP Module 6 Leads	Active High Enable
CUI Inc. PYB30-Q24-S12-U	30 W	36 V	Chassis Mount	EN IEC	Enclosed	2.5 A	88 %	12 V	85 °C	-40 °C	0.75 in	2.66 in	55 mm	19.1 mm	67.5 mm	2.16 in	9 V	1
CUI Inc. PYB30-Q24-D15-U	30 W	36 V	Chassis Mount	EN IEC	Enclosed		90 %	15 V	85 °C	-40 °C	0.75 in	2.66 in	55 mm	19.1 mm	67.5 mm	2.16 in	9 V	2						-15 V	1 A	1 A
CUI Inc. PYB30-Q48-D15-U	30 W	75 V	Chassis Mount	EN IEC	Enclosed		87 %	15 V	85 °C	-40 °C	0.75 in	2.66 in	55 mm	19.1 mm	67.5 mm	2.16 in	18 V	2						-15 V	1 A	1 A
CUI Inc. PYB30-Q48-S12-U	30 W	75 V	Chassis Mount	EN IEC	Enclosed	2.5 A	88 %	12 V	85 °C	-40 °C	0.75 in	2.66 in	55 mm	19.1 mm	67.5 mm	2.16 in	18 V	1
CUI Inc. PYB30-Q24-T312	30 W	36 V	Through Hole		Isolated Module		85 %	3.3 V	85 °C	-40 °C	0.47 " 11.8 mm	50.8 mm				40.6 mm 40.64 mm	9 V	3	ITE (Commercial)	OCP OVP Remote On/Off SCP UVLO	1.5 kV	7-DIP Module	Active High Enable	12 V	3.5 A 625 mA		-12 V
CUI Inc. PYB30-Q48-D5-U	30 W	75 V	Chassis Mount	EN IEC	Enclosed	3 A	86 %	5 V	85 °C	-40 °C	0.75 in	2.66 in	55 mm	19.1 mm	67.5 mm	2.16 in	18 V	2						-5 V				3 A
CUI Inc. PYB30-Q48-T315	30 W	75 V	Through Hole		Isolated Module		85 %	3.3 V	85 °C	-40 °C	0.47 " 11.8 mm	50.8 mm				40.6 mm 40.64 mm	18 V	3	ITE (Commercial)	OCP OVP Remote On/Off SCP UVLO	1.5 kV	7-DIP Module	Active High Enable	15 V	3.5 A	500 mA	-15 V		500 mA
CUI Inc. PYB30-Q48-S5-U	30 W	75 V	Chassis Mount	EN IEC	Enclosed	6 A	88 %	5 V	85 °C	-40 °C	0.75 in	2.66 in	55 mm	19.1 mm	67.5 mm	2.16 in	18 V	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PYB30 Series

Isolated Module DC DC Converter 1 Output 15V 2A 9V - 36V Input
