11_BNC-75-2-1/133_NE

Active

Huber+Suhner, Inc.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

11_BNC-75-2-1/133_NE

Active

Huber+Suhner, Inc.

11_BNC-75-2-1/133_NE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.99

Description

General part information

11_BNC-75 Series

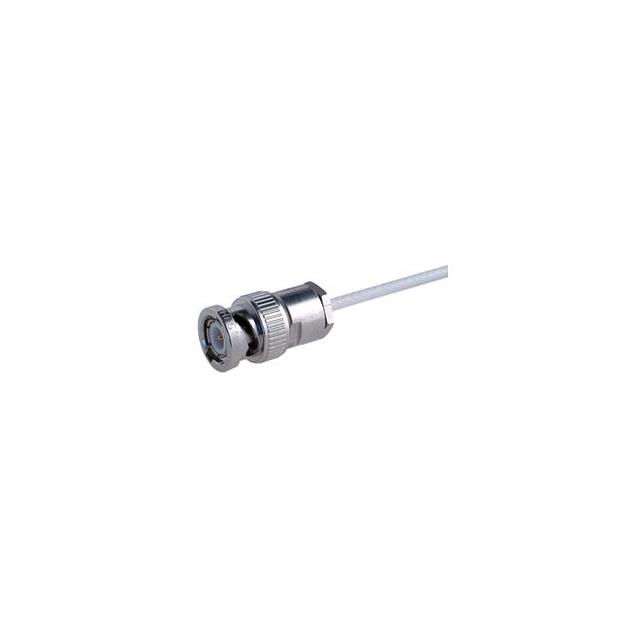

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	11_BNC-75-2-1/133_NE	11_BNC-75 Series

Body Finish	White Bronze	Tri-Metal, White Bronze
Body Material	Brass	Brass, Bronze
Cable Group	187, RG-179	187, RG-179
Center Contact Material	Brass	Brass, Bronze
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Crimp, Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	1 GHz	1 - 4 GHz
Housing Color	Silver	Silver
Impedance	75 Ohms	75 Ohms
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Clamp	Crimp, Clamp
Voltage Rating	500 V	500 V

11_BNC-75 Series

11_BNC-75-5-15/133_NE

Part	Connector Style	Frequency - Max [Max]	Housing Color	Connector Type	Center Contact Plating	Dielectric Material	Contact Termination	Shield Termination	Impedance	Mounting Type	Body Finish	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Fastening Type	Body Material	Center Contact Material	Voltage Rating	Cable Group
Huber+Suhner, Inc. 11_BNC-75-5-15/133_NE	BNC	1 GHz	Silver	Male Pin, Plug	Gold	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	Crimp	Crimp	75 Ohms	Free Hanging (In-Line)	Tri-Metal	500	-65 ░C	165 °C	1	Bayonet Lock	Brass	Brass
Huber+Suhner, Inc. 11_BNC-75-3-8/133_NH	BNC	1 GHz	Silver	Male Pin, Plug	Gold	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	Crimp	Crimp	75 Ohms	Free Hanging (In-Line)	White Bronze	500	-65 ░C	165 °C	1	Bayonet Lock	Brass	Brass	500 V
Huber+Suhner, Inc. 11_BNC-75-4-30/133_NE	BNC	1 GHz	Silver	Male Pin, Plug	Gold		Crimp	Crimp	75 Ohms	Free Hanging (In-Line)	White Bronze	500	-65 ░C	165 °C	1	Bayonet Lock	Brass	Brass	500 V
Huber+Suhner, Inc. 11_BNC-75-3-38/133_NE	BNC	4 GHz	Silver	Male Pin, Plug	Gold	Polytetrafluoroethylene (PTFE)	Crimp	Crimp	75 Ohms	Free Hanging (In-Line)	White Bronze	500	-65 ░C	165 °C	1	Bayonet Lock	Bronze	Brass	500 V
Huber+Suhner, Inc. 11_BNC-75-2-1/133_NE	BNC	1 GHz	Silver	Male Pin, Plug	Gold	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	Solder	Clamp	75 Ohms	Free Hanging (In-Line)	White Bronze	500	-65 ░C	165 °C	1	Bayonet Lock	Brass	Brass	500 V	187, RG-179
Huber+Suhner, Inc. 11_BNC-75-2-15/133_NH	BNC	1 GHz	Silver	Male Pin, Plug	Gold	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	Crimp	Crimp	75 Ohms	Free Hanging (In-Line)	White Bronze	500	-65 ░C	165 °C	1	Bayonet Lock	Brass	Brass, Bronze	500 V	187, RG-179
