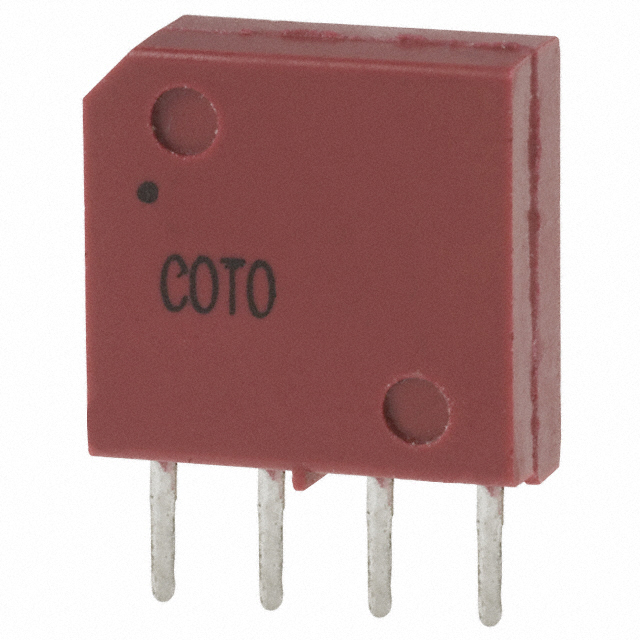

9012-12-11

Active

Coto Technology

RELAY REED SPST 500MA 12V

Search across all available documentation for this part.

Active

Coto Technology

RELAY REED SPST 500MA 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY REED SPST 500MA 5V

Part	Mounting Type	Coil Voltage	Coil Type	Coil Resistance	Release Time	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Contact Rating (Current)	Must Operate Voltage	Must Release Voltage	Termination Style	Features	Operate Time	Switching Voltage
Coto Technology 9012-05-10	Through Hole	5 VDC	Non Latching	500 Ohms	0.1 ms	SPST-NO (1 Form A)	85 °C	-20 C	10 mA	0.5 A	3.75 VDC	0.4 VDC	PC Pin	EMI Shielded	0.35 ms	200 VDC, 200 VAC
Coto Technology 9012-12-10	Through Hole	12 VDC	Non Latching	750 Ohms	0.1 ms	SPST-NO (1 Form A)	85 °C	-20 C	16 mA	0.5 A	9 VDC	1 VDC	PC Pin	EMI Shielded	0.35 ms	200 VDC, 200 VAC
Coto Technology 9012-05-11	Through Hole	5 VDC	Non Latching	500 Ohms	0.1 ms	SPST-NO (1 Form A)	85 °C	-20 C	10 mA	0.5 A	3.75 VDC	0.4 VDC	PC Pin	Diode, EMI Shielded	0.35 ms	200 VDC, 200 VAC
Coto Technology 9012-12-11	Through Hole	12 VDC	Non Latching	750 Ohms	0.1 ms	SPST-NO (1 Form A)	85 °C	-20 C	16 mA	0.5 A	9 VDC	1 VDC	PC Pin	Diode, EMI Shielded	0.35 ms	200 VDC, 200 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY REED SPST 500MA 12V
