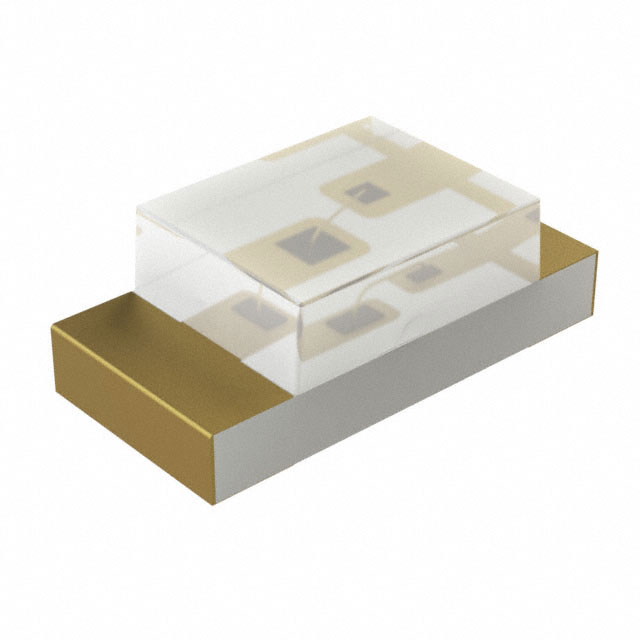

IN-S42BT5YG

Active

Inolux

LED YLW-GRN CLEAR 0402 SMD

Search across all available documentation for this part.

Active

Inolux

LED YLW-GRN CLEAR 0402 SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

LED AMBER CLEAR 0402 SMD

Part	Configuration	Height (Max) [Max] [z]	Mounting Type	Viewing Angle	Millicandela Rating	Lens Transparency	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Dominant	Lens Size [y]	Lens Size [x]	Voltage - Forward (Vf) (Typ)	Color	Wavelength - Peak	Current - Test	Lens Color	Lens Style	Supplier Device Package	Current - DC Forward (If) (Max)	Radiant Intensity (Ie) Min @ If [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength	Type	Orientation
Inolux IN-S42ATA	Standard	0.55 mm	Surface Mount	130 °	145 mcd	Clear	0402 (1005 Metric)	1 mm	0.5 mm	605 nm	0.45 mm	0.6 mm	2.1 V	Amber	610 nm	20 mA	Colorless	Rectangle with Flat Top	0402
Inolux IN-S42BT5A		0.5 mm	Surface Mount	120 °	30 mcd	Clear	0402 (1005 Metric)	1 mm	0.5 mm	605 nm	0.5 mm	0.7 mm	2 V	Amber	603 nm	5 mA		Rectangle with Flat Top	0402
Inolux IN-S42BT5YG		0.5 mm	Surface Mount	120 °	11.5 mcd	Clear	0402 (1005 Metric)	1 mm	0.5 mm	571 nm	0.5 mm	0.7 mm	2 V	Yellow-Green		5 mA		Rectangle with Flat Top	0402
Inolux IN-S42CTQIR			Surface Mount	140 °			0402 (1005 Metric)						1.6 V							70 mA	5.5 mW/sr	85 °C	-40 °C	850 nm	Infrared (IR)	Top View

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Yellow-Green 571nm LED Indication - Discrete 2V 0402 (1005 Metric)
