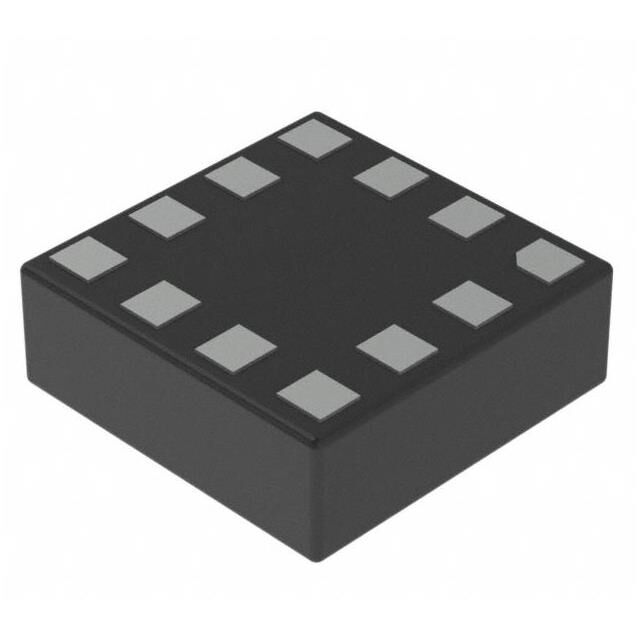

LIS2DU12TR
ActiveMEMS ACCELEROMETER, ± 2G, ± 4G, ± 8G, ± 16G, X, Y, Z, I2C, MIPI I3C, SPI, LGA, 12 PINS
Deep-Dive with AI
Search across all available documentation for this part.
LIS2DU12TR
ActiveMEMS ACCELEROMETER, ± 2G, ± 4G, ± 8G, ± 16G, X, Y, Z, I2C, MIPI I3C, SPI, LGA, 12 PINS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LIS2DU12TR |
|---|---|
| Acceleration Range | 4 g, 16 g, 8 g |
| Acceleration Range [Max] | 2 g |
| Acceleration Range [Min] | -2 g |
| Axis [x] | X |
| Axis [y] | Y |
| Axis [z] | Z |
| Bandwidth [Max] | 400 Hz |
| Bandwidth [Min] | 0.8 Hz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 12-WFLGA |
| Sensitivity (LSB/g) | 1024 LSB/g, 128 LSB/g |
| Supplier Device Package | 12-LGA (2x2) |
| Type | Digital |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.18 | |
| 5 | $ 1.94 | |||
| 10 | $ 1.85 | |||
| 25 | $ 1.74 | |||
| 50 | $ 1.67 | |||
| 100 | $ 1.60 | |||
| 500 | $ 1.46 | |||
| 1000 | $ 1.41 | |||
| 5000 | $ 1.37 | |||
| Digi-Reel® | 1 | $ 2.18 | ||
| 5 | $ 1.94 | |||
| 10 | $ 1.85 | |||
| 25 | $ 1.74 | |||
| 50 | $ 1.67 | |||
| 100 | $ 1.60 | |||
| 500 | $ 1.46 | |||
| 1000 | $ 1.41 | |||
| 5000 | $ 1.37 | |||
| Tape & Reel (TR) | 10000 | $ 1.28 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.88 | |
| 10 | $ 1.69 | |||
| 25 | $ 1.58 | |||
| 50 | $ 1.51 | |||
| 100 | $ 1.48 | |||
| 250 | $ 1.42 | |||
| 500 | $ 1.35 | |||
| 1000 | $ 1.22 | |||
Description
General part information
LIS2DUXS12 Series
The LIS2DUXS12 is a smart, digital, 3-axis linear accelerometer whose MEMS and ASIC have been expressly designed to combine the lowest supply current possible with features such as always-on antialiasing filtering, a finite state machine (FSM) and machine learning core (MLC) with adaptive self-configuration (ASC), and an analog hub / Qvar sensing channel.
The FSM and MLC with ASC deliver outstanding always-on, edge processing capabilities to the LIS2DUXS12, while the analog hub / Qvar sensing channel defines a new degree of system optimization. The LIS2DUXS12 MIPI I3C® slave interface and embedded 128-level FIFO buffer complete a set of features that make this accelerometer a reference in terms of system integration from a standpoint of the bill of materials, processing, or power consumption.
The LIS2DUXS12 has user-selectable full scales of ±2g/±4g/±8g/±16g and is capable of measuring accelerations with output data rates from 1.6 Hz to 800 Hz.
