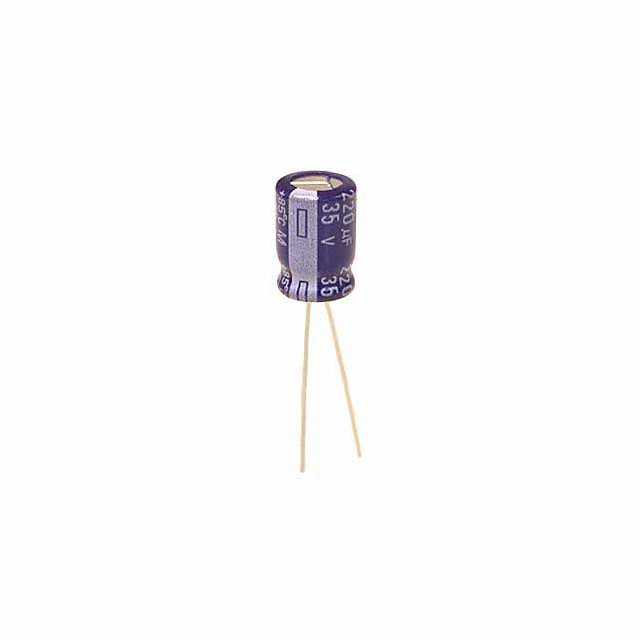

ECA-1VM221

Active

Panasonic Industrial Automation Sales

CAP ALUM 220UF 20% 35V RADIAL TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECA-xxM Spec Sheet

ECA-1VM221

Active

Panasonic Industrial Automation Sales

CAP ALUM 220UF 20% 35V RADIAL TH

Deep-Dive with AI

DocumentsDatasheet ECA-xxM Spec Sheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECA-1VM221

Applications	General Purpose
Capacitance	220 µF
Height - Seated (Max) [Max]	0.492 in
Height - Seated (Max) [Max]	12.5 mm
Lead Spacing	3.5 mm
Lead Spacing	0.138 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	595 mA
Ripple Current @ Low Frequency	350 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Tolerance	20 %
Voltage - Rated	35 V

ECA-1VM Series

Part	Voltage - Rated	Package / Case	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Capacitance	Lifetime @ Temp.	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Lead Spacing	Lead Spacing	Tolerance	Polarization	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales ECA-1VM101I	35 V	Radial Can	357 mA	0.48 "	12.2 mm	0.248 in	6.3 mm	210 mA	100 µF	2000 Hrs	General Purpose	85 °C	-40 °C	Through Hole	0.098 in	2.5 mm	20 %	Polar
Panasonic Industrial Automation Sales ECA-1VM331	35 V	Radial Can	748 mA	0.531 "		0.394 in	10 mm	440 mA	330 µF	2000 Hrs	General Purpose	85 °C	-40 °C	Through Hole	0.197 in	5 mm	20 %	Polar	13.5 mm
Panasonic Industrial Automation Sales ECA-1VM100I	35 V	Radial Can	102 mA	0.472 "	12 mm	0.197 "	5 mm	60 mA	10 µF	2000 Hrs	General Purpose	85 °C	-40 °C	Through Hole	0.098 in	2.5 mm	20 %	Polar
Panasonic Industrial Automation Sales ECA-1VM221B	35 V	Radial Can	595 mA			0.315 "	8 mm	350 mA	220 µF	2000 Hrs	General Purpose	85 °C	-40 °C	Through Hole	0.197 in	5 mm	20 %	Polar		0.492 in	12.5 mm
Panasonic Industrial Automation Sales ECA-1VM220	35 V	Radial Can	161.5 mA	0.472 "	12 mm	0.197 "	5 mm		22 µF	2000 Hrs	General Purpose	85 °C	-40 °C	Through Hole	0.079 in	2 mm	20 %	Polar
Panasonic Industrial Automation Sales ECA-1VM330	35 V	Radial Can	187 mA	0.472 "	12 mm	0.197 "	5 mm		33 ÁF	2000 Hrs	General Purpose	85 °C	-40 °C	Through Hole	0.079 in	2 mm	20 %	Polar
Panasonic Industrial Automation Sales ECA-1VM221	35 V	Radial Can	595 mA			0.315 "	8 mm	350 mA	220 µF	2000 Hrs	General Purpose	85 °C	-40 °C	Through Hole	0.138 in	3.5 mm	20 %	Polar		0.492 in	12.5 mm
Panasonic Industrial Automation Sales ECA-1VM470B	35 V	Radial Can	221 mA	0.472 "	12 mm	0.197 "	5 mm	130 mA	47 µF	2000 Hrs	General Purpose	85 °C	-40 °C	Through Hole	0.197 in	5 mm	20 %	Polar
Panasonic Industrial Automation Sales ECA-1VM470	35 V	Radial Can	221 mA	0.472 "	12 mm	0.197 "	5 mm	130 mA	47 µF	2000 Hrs	General Purpose	85 °C	-40 °C	Through Hole	0.079 in	2 mm	20 %	Polar
Panasonic Industrial Automation Sales ECA-1VM221BJ	35 V	Radial Can	595 mA			0.315 "	8 mm	350 mA	220 µF	2000 Hrs	General Purpose	85 °C	-40 °C	Through Hole	0.138 in	3.5 mm	20 %	Polar		0.492 in	12.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.39
		10	$ 0.25
		200	$ 0.15
		1000	$ 0.10
		5000	$ 0.09
		10000	$ 0.09

Description

General part information

ECA-1VM Series

220 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C

Documents

Technical documentation and resources

Datasheet

ECA-xxM Spec Sheet

Datasheet
