3-1393531-3

Active

TE Connectivity AMP Connectors

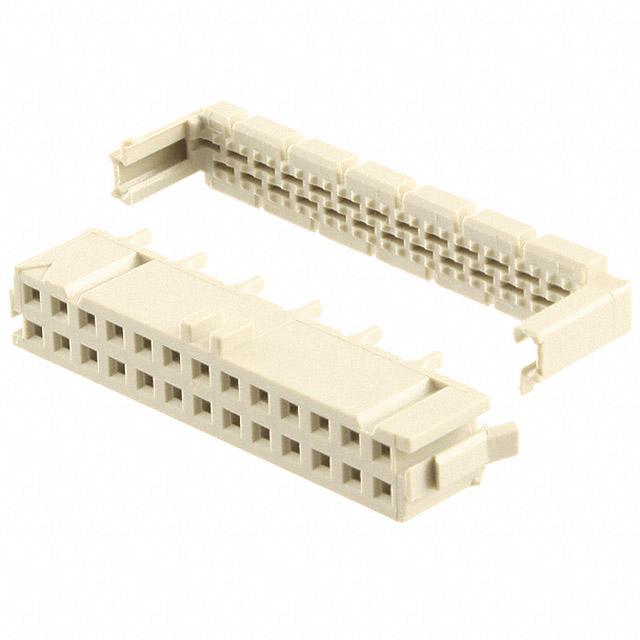

CONN RCPT 26POS IDC GOLD

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT 26POS IDC GOLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

26 Position Rectangular Receptacle Connector IDC Gold

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

CONN RCPT 16POS IDC GOLD

Part	Mounting Type	Number of Positions	Wire Type	Cable Termination	Contact Finish	Number of Rows	Connector Type	Features	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Number of Positions
TE Connectivity AMP Connectors 2-1393531-9	Free Hanging (In-Line)	16	Ribbon Cable	IDC	Gold	2	Receptacle	Feed Through	Female Socket	8 çin	0.203 çm	2.54 mm	0.1 in	0.1 in	2.54 mm
TE Connectivity AMP Connectors 3-1393531-3	Free Hanging (In-Line)		Ribbon Cable	IDC	Gold	2	Receptacle	Feed Through	Female Socket	8 çin	0.203 çm	2.54 mm	0.1 in	0.1 in	2.54 mm	26
TE Connectivity AMP Connectors 3-1393531-5	Free Hanging (In-Line)		Ribbon Cable	IDC	Gold	2	Receptacle	Feed Through	Female Socket	8 çin	0.203 çm	2.54 mm	0.1 in	0.1 in	2.54 mm	40
TE Connectivity AMP Connectors 3-1393531-1	Free Hanging (In-Line)		Ribbon Cable	IDC	Gold	2	Receptacle	Feed Through	Female Socket	8 çin	0.203 çm	2.54 mm	0.1 in	0.1 in	2.54 mm	20
