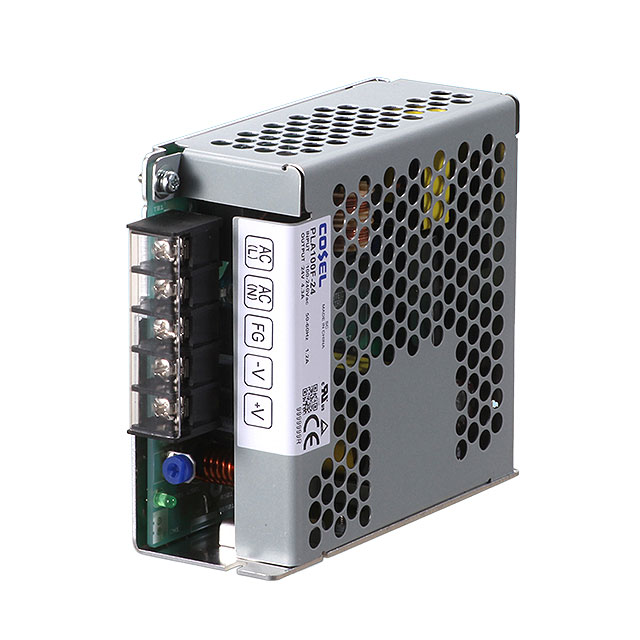

PLA100F-48

Active

Cosel USA, Inc.

AC/DC CONVERTER 48V 100W

Search across all available documentation for this part.

Active

Cosel USA, Inc.

AC/DC CONVERTER 48V 100W

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Efficiency	Power (Watts)	Features	Number of Outputs	Voltage - Output 1	Current - Output 1	Mounting Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]
Cosel USA, Inc. PLA100F-48	CE cURus TUV	89 %	100 W	Universal Input	1	48 V	2.1 A	Chassis Mount	Enclosed	-20 °C	70 °C	ITE (Commercial)
Cosel USA, Inc. PLA100F-12	CE cURus TUV	85 %			1	12 V	8.4 A	Chassis Mount	Enclosed	-20 C	70 °C	ITE (Commercial)	3000 V	1.61 "	40.9 mm	109 mm	97 mm	3.82 in	4.29 in
Cosel USA, Inc. PLA100F-24	CE cURus TUV	88 %	100 W	Universal Input	1	24 V	4.3 A	Chassis Mount	Enclosed	-20 °C	70 °C	ITE (Commercial)
Cosel USA, Inc. PLA100F-15	CE cURus TUV	86 %			1	15 V	6.7 A	Chassis Mount	Enclosed	-20 C	70 °C	ITE (Commercial)	3000 V	1.61 "	40.9 mm	109 mm	97 mm	3.82 in	4.29 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 58.50

General part information

Enclosed AC DC Converters 1 Output 48V 85 ~ 264 VAC Input
