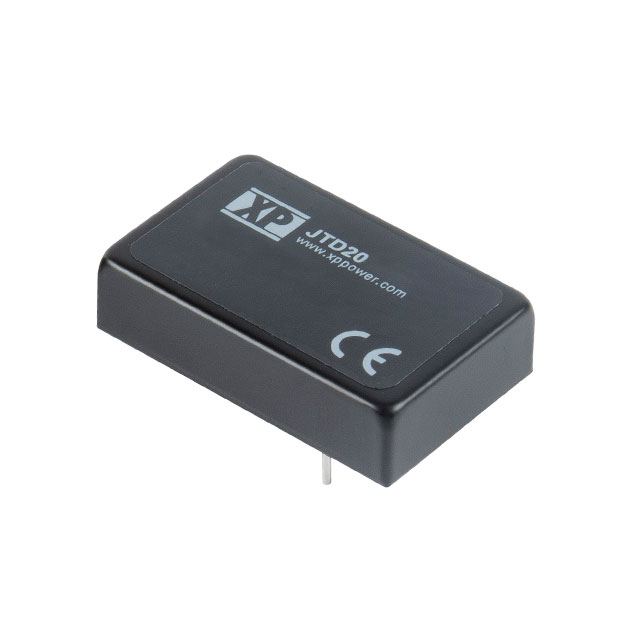

JTD2024S15

Active

XP POWER

DC DC CONVERTER 15V 20W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER 15V 20W

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Voltage - Isolation	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Voltage - Output 1	Standard Number	Mounting Type	Number of Outputs	Applications	Type	Power (Watts)	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Max]	Approval Agency	Features
XP POWER JTD2024S12	88.5 %	3000 V	36 V	-40 °C	100 °C	9 V	12 V	62368-1	Through Hole	1	ITE (Commercial)	Isolated Module	20 W	6-DIP Module	25.4 mm	25.4 mm	10.4 mm	40.6 mm	1.6 "	0.41 "	1.67 A	CE	OCP OVP Remote On/Off SCP
XP POWER JTD2024S05	89 %	3000 V	36 V	-40 °C	100 °C	9 V	5 V	62368-1	Through Hole	1	ITE (Commercial)	Isolated Module	20 W	6-DIP Module	25.4 mm	25.4 mm	10.4 mm	40.6 mm	1.6 "	0.41 "	4 A	CE	OCP OVP Remote On/Off SCP
XP POWER JTD2024S3V3	89 %	3000 V	36 V	-40 °C	100 °C	9 V	3.3 V	62368-1	Through Hole	1	ITE (Commercial)	Isolated Module	18.2 W	6-DIP Module	25.4 mm	25.4 mm	10.4 mm	40.6 mm	1.6 "	0.41 "	5.5 A	CE	OCP OVP Remote On/Off SCP
XP POWER JTD2024S15	88 %	3000 V	36 V	-40 °C	100 °C	9 V	15 V	62368-1	Through Hole	1	ITE (Commercial)	Isolated Module	20 W	6-DIP Module	25.4 mm	25.4 mm	10.4 mm	40.6 mm	1.6 "	0.41 "	1.33 A	CE	OCP OVP Remote On/Off SCP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 34.12

General part information

Isolated Module DC DC Converter 1 Output 15V 1.33A 9V - 36V Input
