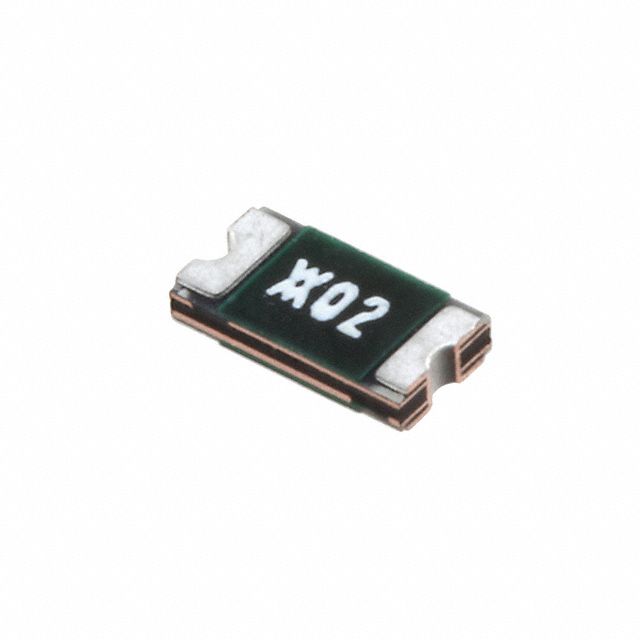

RF5030-000
ActiveLITTELFUSE
NANOASMDCH005F-2/ TR
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RF5030-000 | nanoASMDCH005F Series |
|---|---|---|
| Approval Agency | - | TUV, UR |
| Current - Hold (Ih) (Max) | - | 50 mA |
| Current - Max | - | 20 A |
| Current - Trip (It) | - | 150 mA |
| Grade | - | Automotive |
| Mounting Type | - | Surface Mount |
| null | - | |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 3216 Metric |
| Package / Case | - | 1206 |
| Package / Case | - | Concave |
| Qualification | - | AEC-Q200 |
| Resistance - Initial (Ri) (Min) | - | 3.5 Ohms |
| Resistance - Post Trip (R1) (Max) | - | 35 Ohms |
| Size / Dimension | - | 0.063 in |
| Size / Dimension | - | 0.126 in |
| Size / Dimension | - | 1.59 mm |
| Size / Dimension | - | 3.2 mm |
| Thickness (Max) | - | 0.033 in |
| Thickness (Max) | - | 0.85 mm |
| Time to Trip | - | 20 s |
| Type | - | Polymeric |
| Voltage - Max | - | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.10 | |
| 5 | $ 1.06 | |||
| 10 | $ 0.99 | |||
| 50 | $ 0.82 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.67 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.50 | |||
| Digi-Reel® | 1 | $ 1.10 | ||
| 5 | $ 1.06 | |||
| 10 | $ 0.99 | |||
| 50 | $ 0.82 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.67 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.50 | |||
| Tape & Reel (TR) | 3000 | $ 0.42 | ||
| Newark | Each (Supplied on Full Reel) | 2000 | $ 0.53 | |
| 4000 | $ 0.48 | |||
| 6000 | $ 0.46 | |||
| 10000 | $ 0.45 | |||
nanoASMDCH005F Series
nanoASMDCH005F-2
| Part | Voltage - Max [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Current - Trip (It) | Type | Grade | Qualification | Resistance - Post Trip (R1) (Max) [Max] | Resistance - Initial (Ri) (Min) [Min] | Approval Agency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Current - Hold (Ih) (Max) [Max] | Current - Max [Max] | Package / Case | Package / Case | Package / Case | Time to Trip | Thickness (Max) [Max] | Thickness (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE RF5030-000 | |||||||||||||||||||||||
LITTELFUSE RF5030-000 | |||||||||||||||||||||||
LITTELFUSE RF5030-000 | 30 V | 125 °C | -40 °C | Surface Mount | 150 mA | Polymeric | Automotive | AEC-Q200 | 35 Ohms | 3.5 Ohms | TUV, UR | 0.063 in | 0.126 in | 1.59 mm | 3.2 mm | 50 mA | 20 A | 3216 Metric | 1206 | Concave | 20 s | 0.033 in | 0.85 mm |
Description
General part information
nanoASMDCH005F Series
Helping to reduce weight of wire harnesses. PPTC devices distributed in a circuit can allow the use of smaller wire sizes with the resulting harnesses. Forego looping back and forth around a fuse box and place your protection wherever you see fit. The solid state composition of PPTC devices helps provide reliability.
