2-1355123-3

Active

TE Connectivity AMP Connectors

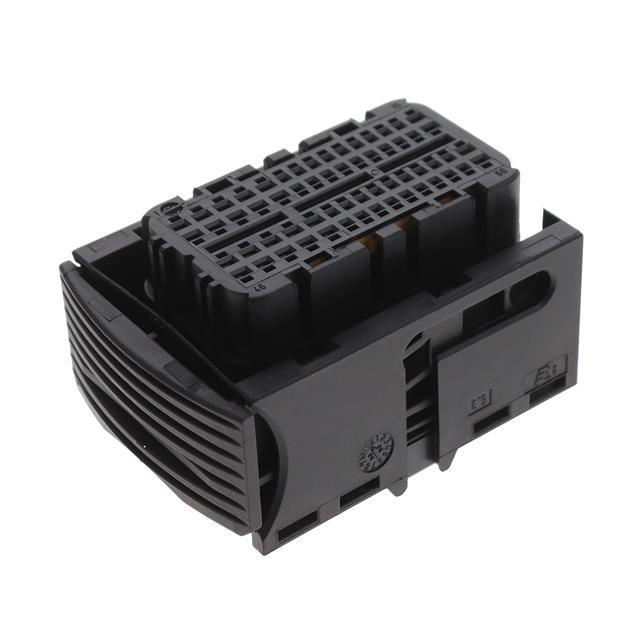

CARRIER HSG 60POS,ASSY

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CARRIER HSG 60POS,ASSY

Technical Specifications

Parameters and characteristics for this part

Specification	2-1355123-3

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	60
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

CARRIER HSG 60POS,ASSY

Part	Contact Termination	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Material	Row Spacing [x]	Row Spacing	Mounting Type	Color	Number of Positions
TE Connectivity AMP Connectors 2-1355123-3	Crimp	Female Socket	-40 °C	120 °C	Plug	Polybutylene Terephthalate (PBT), Glass Filled	0.1 in	2.54 mm	Free Hanging (In-Line)	Black	60

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Rectangular Connectors - Housings Plug Black
