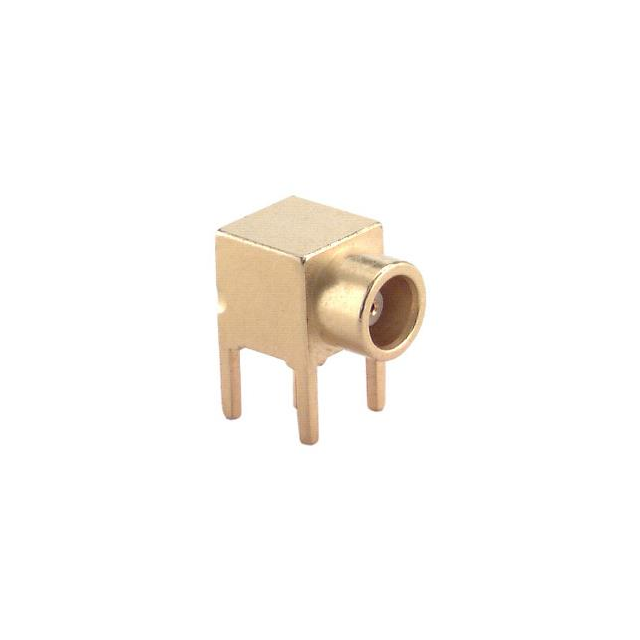

85_MCX-50-0-16/111_NH
ActiveHuber+Suhner, Inc.
RF MCX CONNECTOR, 1 CONTACT(S), FEMALE, BOARD MOUNT, SOLDER TERMINAL, LOCKING, JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 85_MCX-50-0-16/111_NH |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | MCX |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 170 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.41 | |
| 10 | $ 7.57 | |||
| 25 | $ 7.13 | |||
| 50 | $ 6.95 | |||
| 100 | $ 6.76 | |||
| 250 | $ 6.03 | |||
| 500 | $ 5.67 | |||
| 1000 | $ 5.01 | |||
Description
General part information
85_MCX Series
MCX Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
