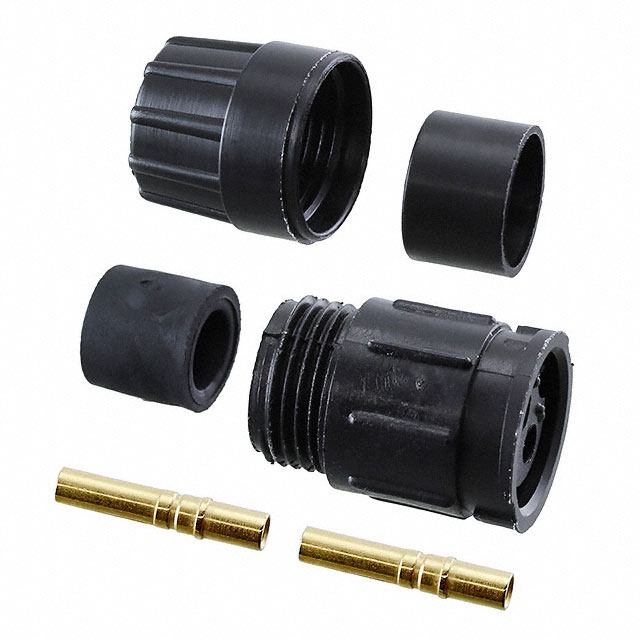

4180-2SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 2POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 2POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

CONN RCPT FMALE 2POS GOLD CRIMP

Part	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Connector Type	Color	Termination	Fastening Type	Orientation	Ingress Protection	Number of Positions	Mounting Feature	Contact Finish - Mating	Voltage Rating	Primary Material
Conxall/Switchcraft 4180-2SG-300	Brass	-40 °C	115 °C	Unshielded	Receptacle, Female Sockets	Black	Crimp	Bayonet Lock	Keyed	Weathertight	2	Bulkhead - Front Side Nut	Gold	600 V	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 6.76

General part information

2 Position Circular Connector Receptacle, Female Sockets Crimp

Technical documentation and resources
