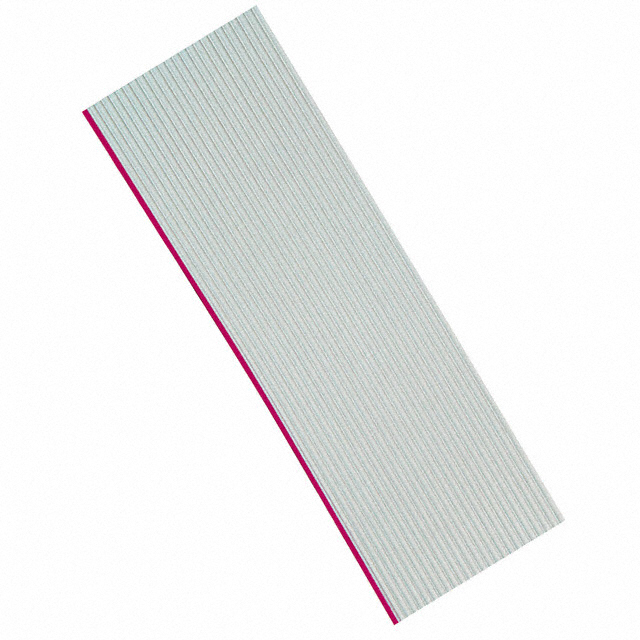

AWG28-24/G/300

Unknown

Assmann WSW Components

CBL RIBN 24COND 0.05 GRAY 10'

Search across all available documentation for this part.

Unknown

Assmann WSW Components

CBL RIBN 24COND 0.05 GRAY 10'

Technical Specifications

Parameters and characteristics for this part

Specification	AWG28-24/G/300

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
First Conductor Mark	Red
Insulation Resistance	100 MOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	91.44 m, 7.62 m
Length	300 ft, 25 ft
Length	Enter Number of Feet in Order Quantity
Length [x]	3.05 m, 30.48 m
Length [x]	10 ft, 100 ft
Number of Conductors	24
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width [y]	1.2 in
Ribbon Width [y]	30.48 mm
Shielding	Unshielded
Spool Size	300 ft
Spool Size	91.44 m
Voltage	300 V
Wire Gauge	28 AWG

Part	Length	Length	Ratings	Jacket (Insulation) Material	Insulation Resistance	First Conductor Mark	Jacket Color	Ribbon Width [y]	Ribbon Width [y]	Length	Wire Gauge	Pitch [x]	Pitch [x]	Length [x]	Length [x]	Shielding	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Spool Size	Spool Size	Ribbon Thickness	Ribbon Thickness	Cable Type	Operating Temperature
Assmann WSW Components AWG28-24/G/300	7.62 m 91.44 m	25 ft 300 ft	UL Style 2651	Poly-Vinyl Chloride (PVC)	100 MOhms	Red	Gray	1.2 in	30.48 mm	Enter Number of Feet in Order Quantity	28 AWG	0.05 in	1.27 mm	3.05 m 30.48 m	10 ft 100 ft	Unshielded	Copper Tinned	105 ░C	-10 °C	24	7	36 AWG	300 V	300 ft	91.44 m	0.89 mm	0.035 in	Flat Cable
Assmann WSW Components AWG28-24/F/300	7.62 m 91.44 m	25 ft 300 ft	UL Style 2651	Poly-Vinyl Chloride (PVC)	100 MOhms	Red	Multiple	1.2 in	30.48 mm	Enter Number of Feet in Order Quantity	28 AWG	0.05 in	1.27 mm			Unshielded	Copper Tinned			24	7	36 AWG	300 V	300 ft	91.44 m	0.89 mm	0.035 in	Flat Cable	105 C
Assmann WSW Components AWG28-24/G-1/300			UL Style 2651	Poly-Vinyl Chloride (PVC)	100 MOhms	Red	Gray			Enter Number of Feet in Order Quantity	28 AWG	0.039 in	1 mm	3.05 m	10 ft	Unshielded	Copper Tinned	105 ░C	-10 °C	24	7	36 AWG	300 V	300 ft	91.44 m	0.89 mm	0.035 in	Flat Cable
Assmann WSW Components AWG28-24/F-1/300	15.24 m 91.44 m	50 ft 300 ft	UL Style 2651	Poly-Vinyl Chloride (PVC)	100 MOhms		Multiple				28 AWG	0.039 in	1 mm	30.48 m	100 ft	Unshielded	Copper Tinned	105 ░C	-10 °C	24	7	36 AWG	300 V			0.89 mm	0.035 in	Flat Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Flat Ribbon Cable Gray 24 Conductors 0.050" (1.27mm) Flat Cable 300.0' (91.44m)
