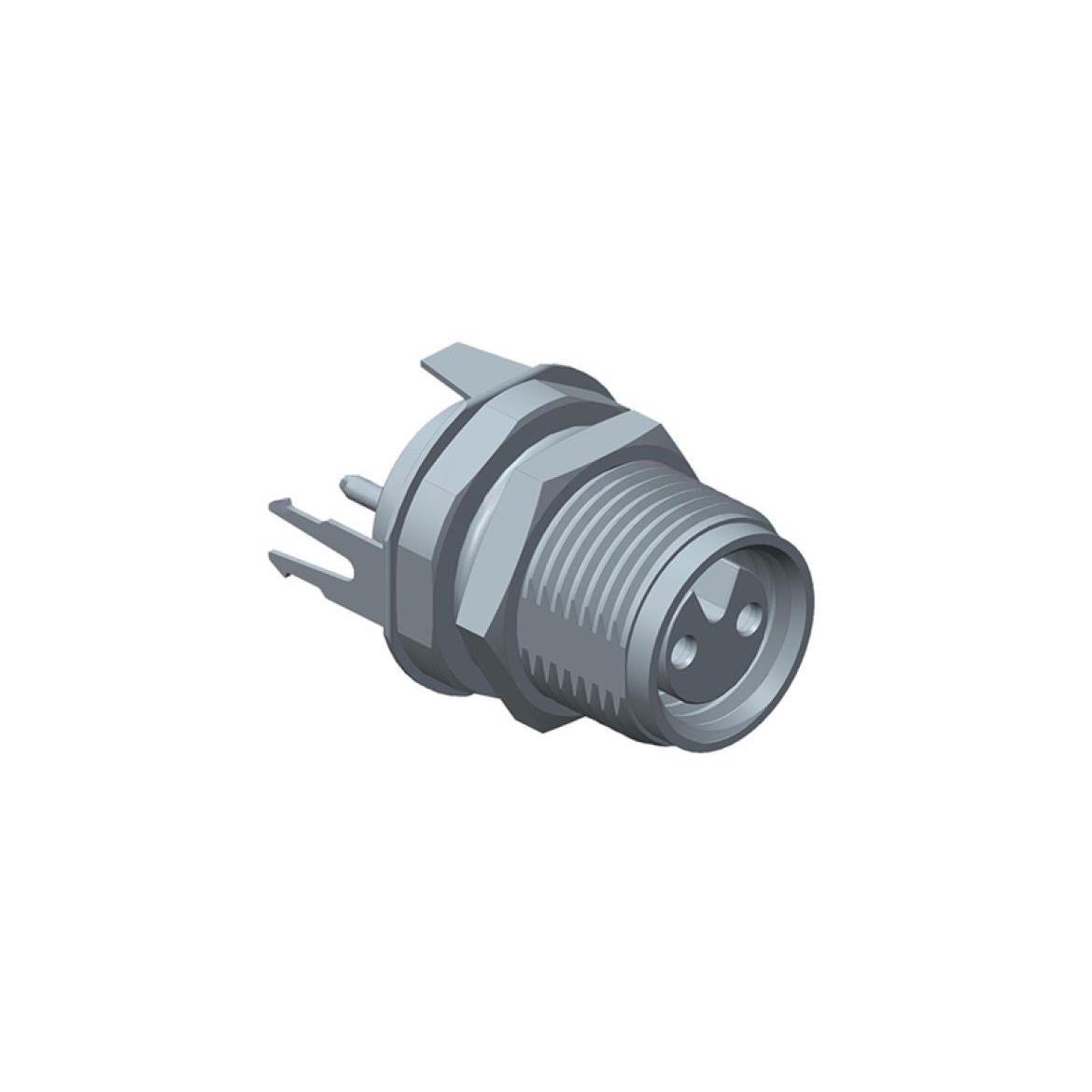

M8AS-03PFFP-SF8001
ActiveAmphenol LTW
M SERIES, GUIDED M8, 3A, 03 PINS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M8AS-03PFFP-SF8001
ActiveAmphenol LTW
M SERIES, GUIDED M8, 3A, 03 PINS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M8AS-03PFFP-SF8001 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 3 A |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | S |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M8-3 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.36 | |
| 10 | $ 8.43 | |||
| 100 | $ 7.53 | |||
| 1000 | $ 5.58 | |||
Description
General part information
M8AS-03PFFP Series
3 Position Circular Connector Receptacle, Female Sockets Solder
