NTFR-3/8-0-SP

Active

TE Connectivity Aerospace, Defense and Marine

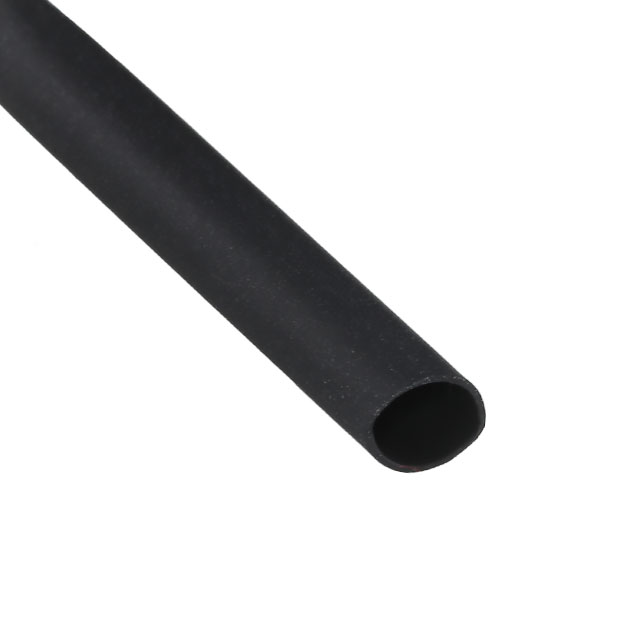

HEATSHRINK TUBING 3/8" FEET

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

HEATSHRINK TUBING 3/8" FEET

Technical Specifications

Parameters and characteristics for this part

Specification	NTFR-3/8-0-SP

Color	Black
Features	Fluid Resistant, Flame Retardant, Abrasion Resistant
Inner Diameter - Recovered [diameter]	0.214 in
Inner Diameter - Recovered [diameter]	5.44 mm
Inner Diameter - Supplied [diameter]	0.375 in
Inner Diameter - Supplied [diameter]	9.53 mm
Length	Enter Number of Feet in Order Quantity
Length	7.6 m, 1.52 m, 15.2 m
Length	25 ft, 5 ', 50 ft
Material	Neoprene, Irradiated
Operating Temperature [Max]	121 °C
Operating Temperature [Min]	-70 °C
Recovered Wall Thickness	1.02 mm
Recovered Wall Thickness	0.04 in
Shrink Temperature	135 C
Shrinkage Ratio [Max]	1.75
Shrinkage Ratio [Min]	1
Spool Size	91.4 m
Spool Size	300 ft
Type	Tubing, Flexible

HEATSHRINK TUBING 3/8" FEET

Part	Operating Temperature [Min]	Operating Temperature [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Spool Size	Spool Size	Length	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Length	Length	Material	Shrink Temperature	Features	Color
TE Connectivity Aerospace, Defense and Marine NTFR-3/8-0-SP	-70 °C	121 °C	1.02 mm	0.04 in	91.4 m	300 ft	Enter Number of Feet in Order Quantity	1	1.75	0.214 in	5.44 mm	0.375 in	9.53 mm	Tubing, Flexible	1.52 m, 7.6 m, 15.2 m	5 ', 25 ft, 50 ft	Neoprene, Irradiated	135 C	Abrasion Resistant, Flame Retardant, Fluid Resistant	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.375" (9.53mm) 1.75 to 1 Black Enter Number of Feet in Order Quantity
