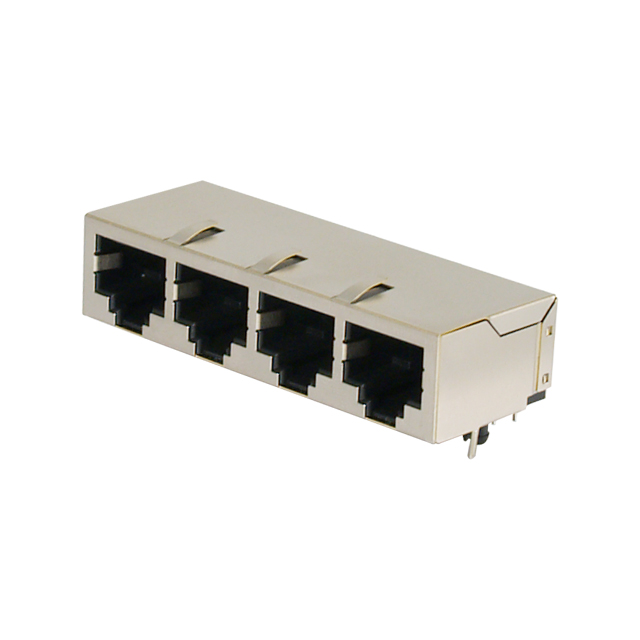

GSGX-NS2-488-368
ActiveKycon, Inc.
GANGJK 4PORT RT< 8P8C SHIELD LG
Deep-Dive with AI
Search across all available documentation for this part.
GSGX-NS2-488-368
ActiveKycon, Inc.
GANGJK 4PORT RT< 8P8C SHIELD LG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GSGX-NS2-488-368 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Phosphor Bronze |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Ports | 4 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 90 ° |
| Ratings | Cat5 |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Down |
| Termination | Solder |
GSGX-N Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Number of Ports | Contact Finish | Number of Rows | Number of Positions/Contacts | Ratings | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Housing Material | Mounting Type | Tab Direction | Shielding | Contact Material | Orientation | LED Color | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Kycon, Inc. | 85 °C | -40 °C | Solder | 8 | Gold | 1 | 8p8c (RJ45 Ethernet) | Cat5 | 50 µin | 1.27 µm | Jack | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Down | Shielded | Phosphor Bronze | 90 ° | Does Not Contain LED | |
Kycon, Inc. | 85 °C | -40 °C | Solder | 2 | Gold | 1 | 8p8c (RJ45 Ethernet) | Cat5 | 50 µin | 1.27 µm | Jack | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Down | Shielded | Phosphor Bronze | 90 ° | Does Not Contain LED | |
Kycon, Inc. | 85 °C | -40 °C | Solder | 10 | Gold | 1 | 8p8c (RJ45 Ethernet) | Cat5 | Jack | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Down | Unshielded | Phosphor Bronze | 90 ° | Does Not Contain LED | Flash | ||
Kycon, Inc. | 85 °C | -40 °C | Solder | 2 | Gold | 1 | 8p8c (RJ45 Ethernet) | Cat5 | 50 µin | 1.27 µm | Jack | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Down | Unshielded | Phosphor Bronze | 90 ° | Does Not Contain LED | |
Kycon, Inc. | 85 °C | -40 °C | Solder | 4 | Gold | 1 | 8p8c (RJ45 Ethernet) | Cat5 | Jack | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Down | Shielded EMI Finger | Phosphor Bronze | 90 ° | Does Not Contain LED | Flash | ||
Kycon, Inc. | 85 °C | -40 °C | Solder | 2 | Gold | 1 | 8p8c (RJ45 Ethernet) | Cat5 | Jack | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Down | Shielded EMI Finger | Phosphor Bronze | 90 ° | Does Not Contain LED | Flash | ||
Kycon, Inc. | 85 °C | -40 °C | Solder | 6 | Gold | 1 | 8p8c (RJ45 Ethernet) | Cat5 | 50 µin | 1.27 µm | Jack | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Down | Shielded | Phosphor Bronze | 90 ° | Does Not Contain LED | |
Kycon, Inc. | 85 °C | -40 °C | Solder | 2 | Gold | 1 | 8p8c (RJ45 Ethernet) | Cat5 | Jack | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Down | Shielded EMI Finger | Phosphor Bronze | 90 ° | Does Not Contain LED | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 600 | $ 3.77 | |
Description
General part information
GSGX-N Series
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5
