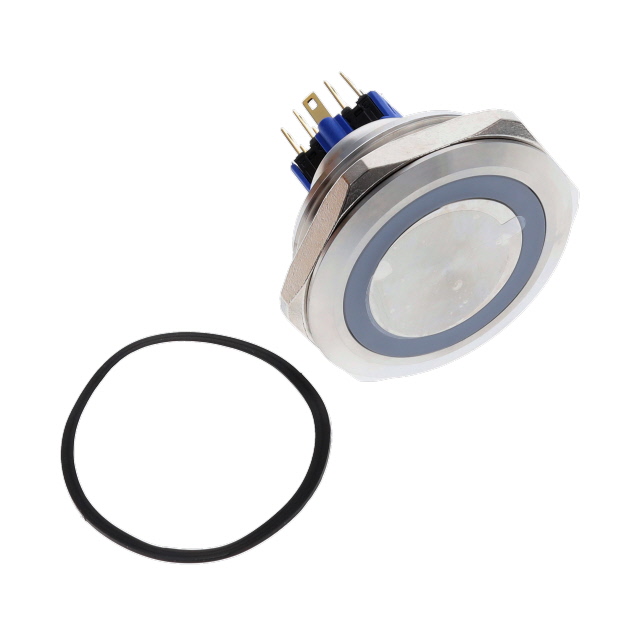

PV10F2V0SS-341

Active

E-Switch

SWITCH: VANDAL RESISTANT; POS: 2; (SPST-NO + SPST-NC) X2; IP65

Deep-Dive with AI

Search across all available documentation for this part.

PV10F2V0SS-341

Active

E-Switch

SWITCH: VANDAL RESISTANT; POS: 2; (SPST-NO + SPST-NC) X2; IP65

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PV10F2V0SS-341

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	4PST-2NO/2NC
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	50000 Cycles
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	2.8 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	40 mm
Switch Function	Off-Mom, On-Mom
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	48 V

PV10 Series

Part	Actuator Type	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Type	Switch Function	Electrical Life	Termination Style	Actuator Marking	Ingress Protection	Mounting Type	Current Rating (Amps)	Mechanical Life	Illumination Type, Color	Circuit	Voltage Rating - DC	Panel Cutout Dimensions [diameter]
E-Switch PV10F2V0SS-331	Button Flush Round	Silver	55 °C	-20 C	2.8 VDC	Anti-Vandal Illuminated	Off-Mom On-Mom	50000 Cycles	Solder Lug	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Front	2 A	1000000 Cycles	Green LED	4PST-2NO/2NC	48 V	40 mm
E-Switch PV10F2U0SS-311	Button Flush Round	Silver	55 °C	-20 C	1.8 VDC	Anti-Vandal Illuminated	Off-On On-Off	50000 Cycles	Solder Lug	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Front	2 A	1000000 Cycles	LED Red	4PST-2NO/2NC	48 V	40 mm
E-Switch PV10FWV0SS-311	Button Flush Round	Silver	55 °C	-20 C	1.8 VDC	Anti-Vandal Illuminated	Off-Mom On-Mom	50000 Cycles	Wire Leads	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Front	2 A	1000000 Cycles	LED Red	4PST-2NO/2NC	48 V	40 mm
E-Switch PV10F2U0SS-341	Button Flush Round	Silver	55 °C	-20 C	2.8 VDC	Anti-Vandal Illuminated	Off-On On-Off	50000 Cycles	Solder Lug	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Front	2 A	1000000 Cycles	Blue LED	4PST-2NO/2NC	48 V	40 mm
E-Switch PV10F2V0SS-341	Button Flush Round	Silver	55 °C	-20 C	2.8 VDC	Anti-Vandal Illuminated	Off-Mom On-Mom	50000 Cycles	Solder Lug	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Front	2 A	1000000 Cycles	Blue LED	4PST-2NO/2NC	48 V	40 mm
E-Switch PV10FWU0SS-311	Button Flush Round	Silver	55 °C	-20 C	1.8 VDC	Anti-Vandal Illuminated	Off-On On-Off	50000 Cycles	Wire Leads	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Front	2 A	1000000 Cycles	LED Red	4PST-2NO/2NC	48 V	40 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 44.02
		10	$ 40.06
		30	$ 38.20
		40	$ 35.64
		80	$ 34.24
		230	$ 31.91
TME	N/A	1	$ 46.86
		10	$ 44.44

Description

General part information

PV10 Series

Pushbutton Switch 4PST-2NO/2NC Anti-Vandal, Illuminated Panel Mount, Front
